cylinder kit Naraku V.2 70cc for Peugeot vertical AC

Naraku sport cylinder kit V.2 (cast iron) 70cc for air-cooled Peugeot scooters with standing engines.

The Naraku piston is provided with a molybdenum coating, which protects the cylinder and piston during the break-in period. This coating dissolves completely after a few hours of operation.

• Cylinder bore: approx 47mm
• Diameter piston pin: 12mm
• Piston: approx. 46.8mm

The cylinder is suitable for series and sports exhaust systems. If the original carburetor remains installed, the carburetor jetting should be increased by about 7-10% (guideline). It is recommended to use a sports carburetor 17.5-19mm. Delivery includes gasket set.

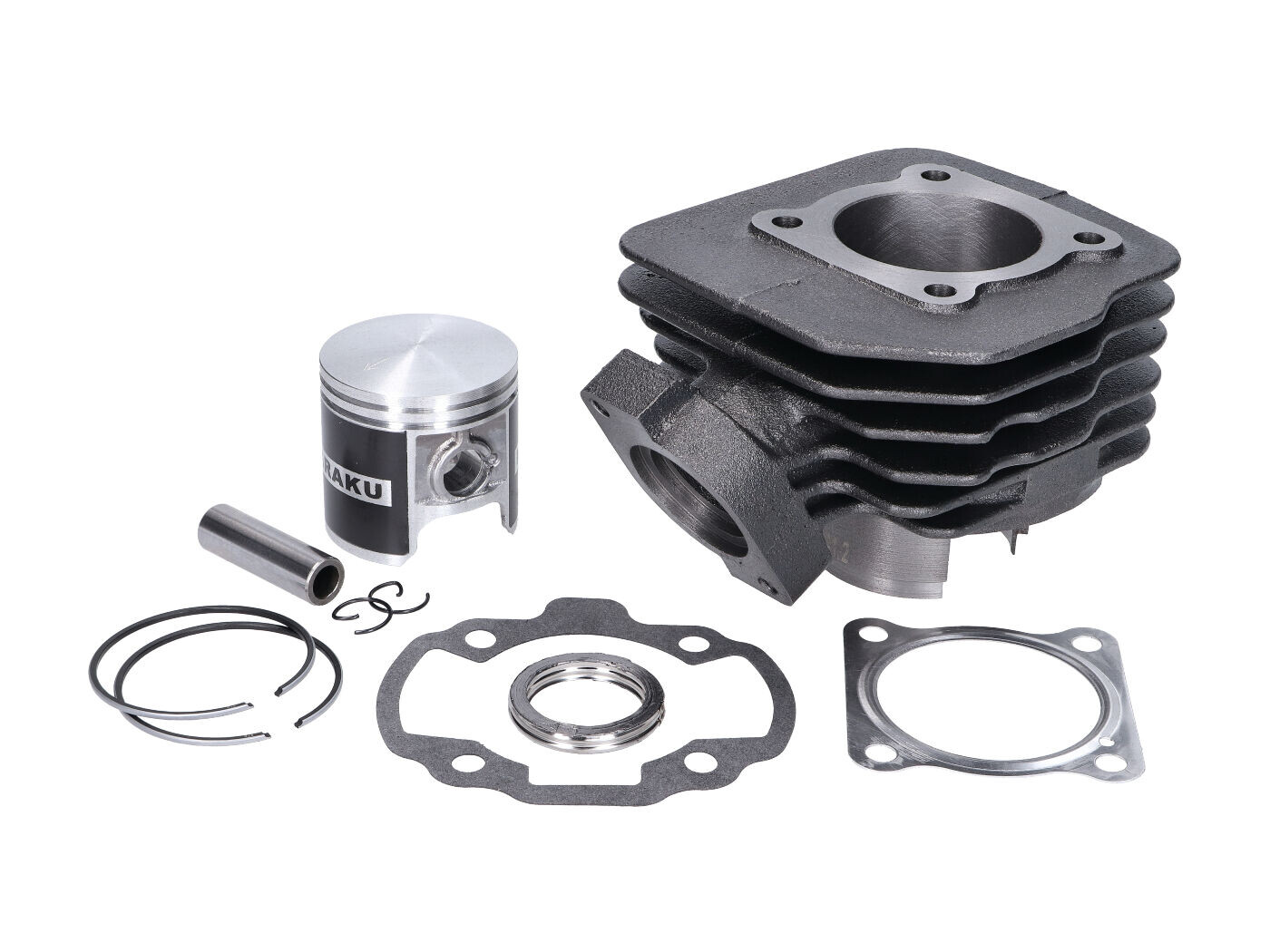

Scope of supply as shown in the product photo. Only to be used with 70cc cylinder head. This must be ordered separately.

If necessary, the cylinder lock must be removed when mounting the kit in the engine case.
