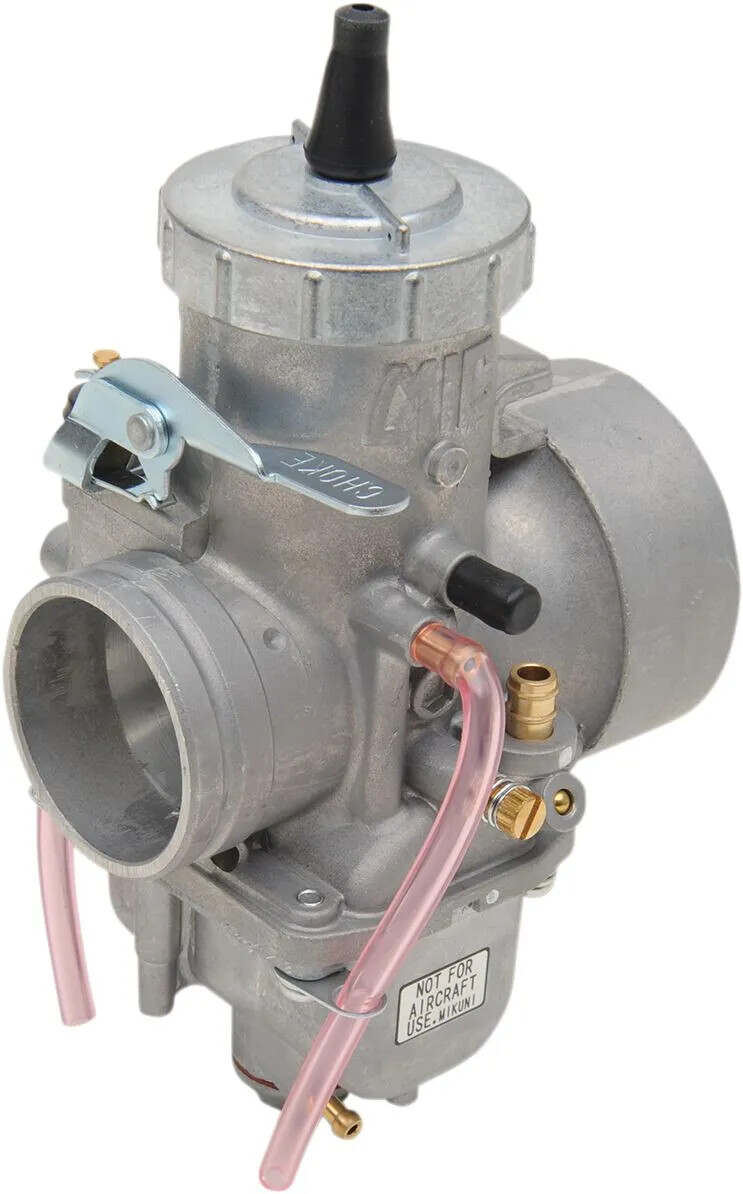

CARBURETOR 44MM VM44-3

VM Series Round Slide Carburetor

• Adjustment screws and enricher are on left side of carburetor unless noted
• Round slide configuration offers great flow characteristics
• Use Mikuni jets and parts for best results
• Clamp type mounting unless noted via footnote
• Made in Japan

Mikuni VM44-3 Dimension A= 52mm, B= 116mm, C= 193mm, D= 70mm, Total Width 79mm

COLOR/FINISH	Natural
FEATURES	Clamp-On Type Mounting
UNITS	Each
PRODUCT NAME	VM Round Slide Carburetor
CARBURETOR SIZE	44,00 mm (1,73")
AIR JET	0.5
SPIGOT MOUNTING OUTSIDE DIAMETER	52
NEEDLE VALVE	3.3 (VM34/39)
SLIDE CUTAWAY	2.5 (VM44/23)
NEEDLE JET	AA-5 (224 Series)
CARBURETOR SIZE IMPERIAL	1.73"
NEEDLE	7F7
CARBURETOR SIZE METRIC	44.00 mm
PILOT JET	35 (VM22/210)
MAIN JET	310 (4/042)
BASE FINISH	Natural
