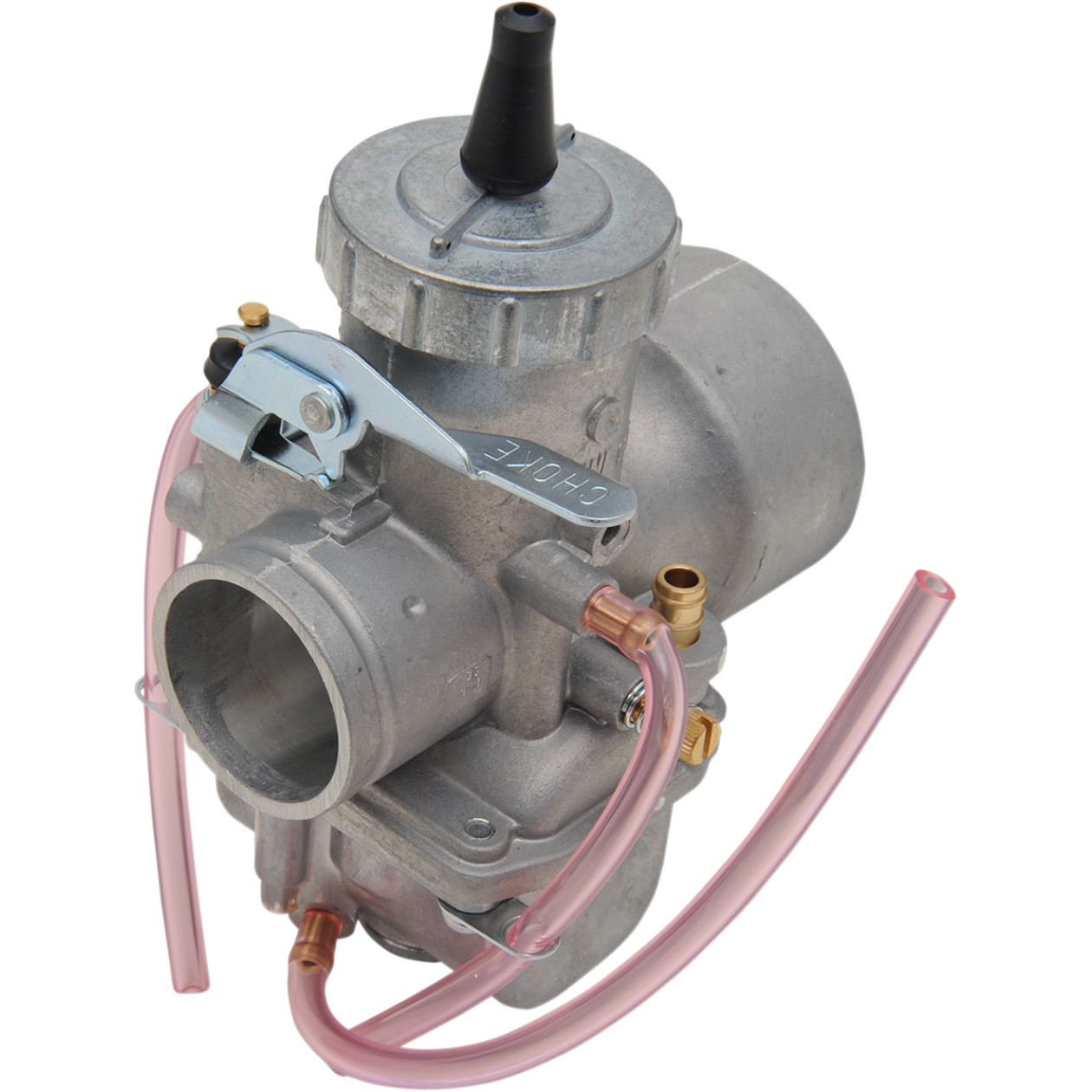

CARBURETOR 36MM VM36-4

VM Series Round Slide Carburetor

• Adjustment screws and enricher are on left side of carburetor unless noted
• Round slide configuration offers great flow characteristics
• Use Mikuni jets and parts for best results
• Clamp type mounting unless noted via footnote
• Made in Japan

Mikuni VM36-4 Dimension A= 43mm, B= 116mm, C= 152mm, D= 62mm, Total Width= 79mm

COLOR/FINISH	Natural
FEATURES	Clamp-On Type Mounting
UNITS	Each
PRODUCT NAME	VM Round Slide Carburetor
CARBURETOR SIZE	36,00 mm (1,42")
AIR JET	2.0
SPIGOT MOUNTING OUTSIDE DIAMETER	43
NEEDLE VALVE	3.3 (VM34/39)
SLIDE CUTAWAY	2.5 (VM36/36)
NEEDLE JET	Q-5 (159 Series)
CARBURETOR SIZE IMPERIAL	1.42"
NEEDLE	6FJ6
CARBURETOR SIZE METRIC	36.00 mm
PILOT JET	35 (VM22/210)
MAIN JET	310 (4/042)
BASE FINISH	Natural
