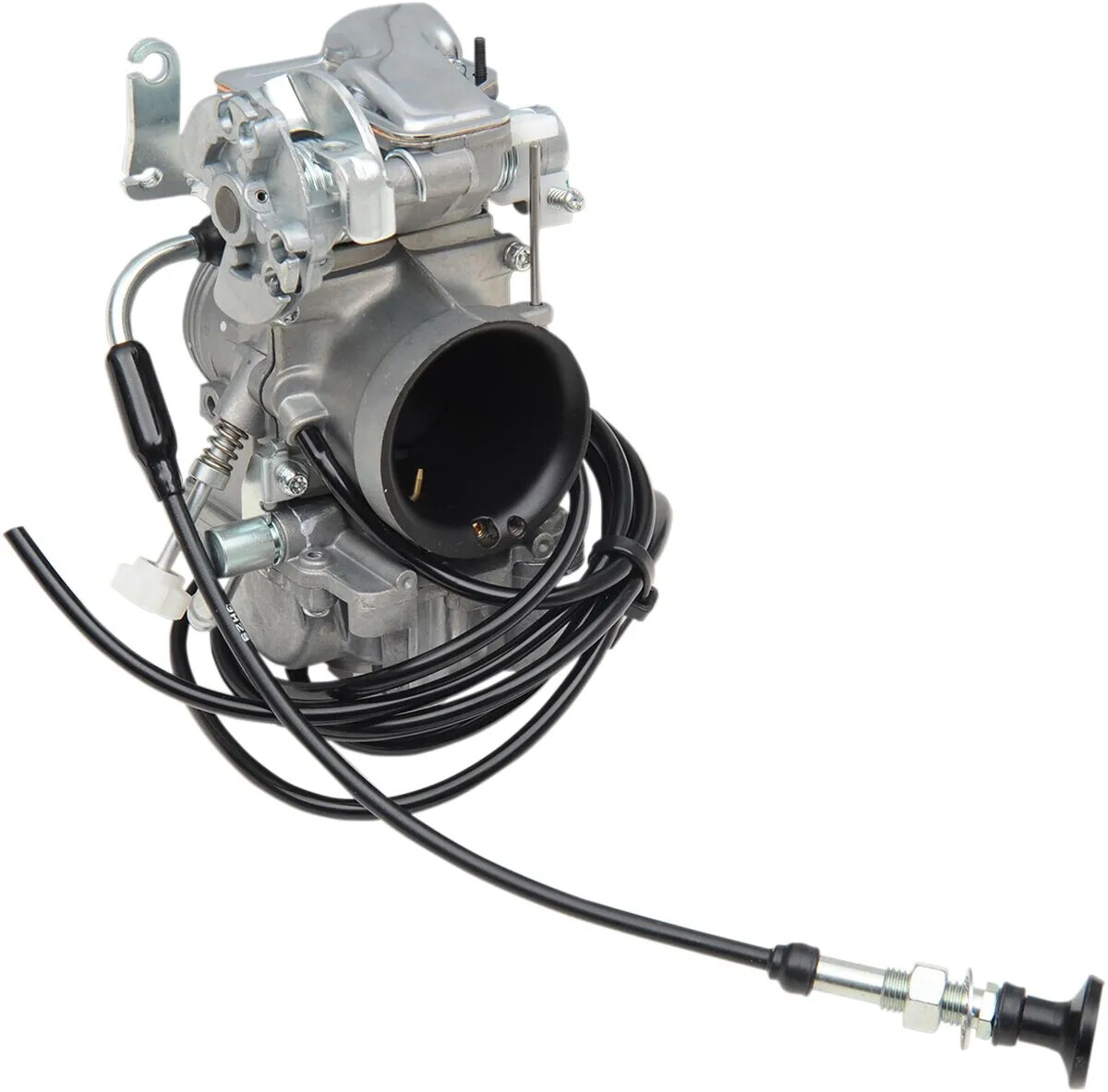

CARBURETOR TM40-6

TM Series Flat Slide Performance Carburetor

• Flat slide design helps create a smooth bore effect, increasing air flow
• Significant performance improvements over older round slide carbs
• Great throttle response because of more precise fuel metering
• All are center-pull style throttle, unless noted by footnote
• Jetting may need to be changed per application
• Made in Japan

Bell crank push pull throttle. Mikuni TM40-6 Dimension A= 44mm, B= 100mm, C= 165mm, D= 55mm

STYLE	Flat Slide
UNITS	Each
PRODUCT NAME	Carburetor Bell Crank Push-Pull
CARBURETOR SIZE	40,00 mm (1,57")
AIR JET	1.1
SPIGOT MOUNTING OUTSIDE DIAMETER	44
NEEDLE VALVE	-
SLIDE CUTAWAY	-
NEEDLE JET	Y-6 (568 Series)
CARBURETOR SIZE IMPERIAL	1.57"
NEEDLE	J8-9DJY01
CARBURETOR SIZE METRIC	40.00 mm
PILOT JET	17.5 (VM22/210)
MAIN JET	165 (4/042)
