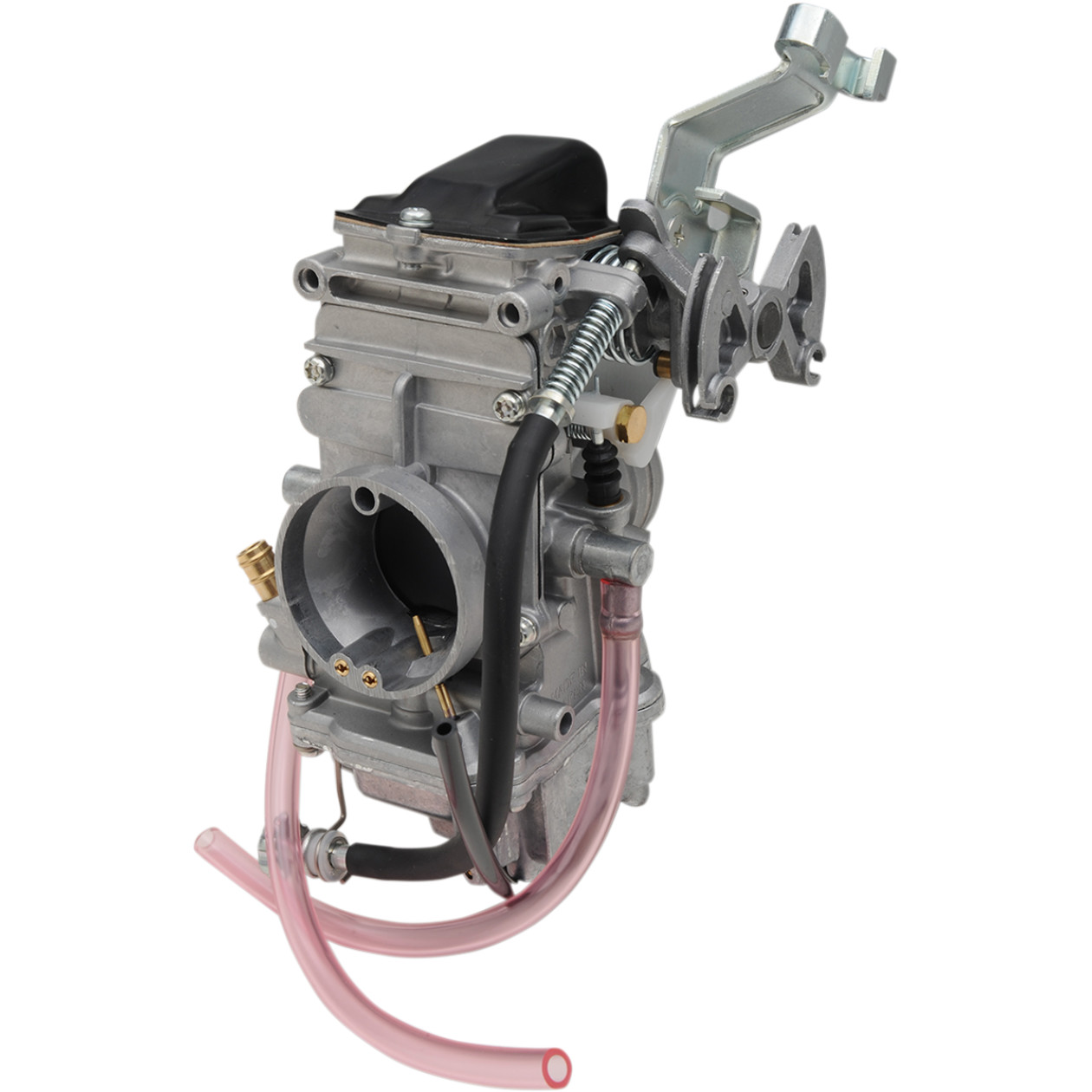

CARBURETOR TM33-8012

TM Series Flat Slide Performance Carburetor

• Flat slide design helps create a smooth bore effect, increasing air flow
• Significant performance improvements over older round slide carbs
• Great throttle response because of more precise fuel metering
• All are center-pull style throttle, unless noted by footnote
• Jetting may need to be changed per application
• Made in Japan

Bell crank push pull throttle. Mikuni TM33-8012 Dimension A= 40mm, B= 93mm, C= 160mm, D= 50mm.

STYLE	Flat Slide
UNITS	Each
PRODUCT NAME	Carburetor
CARBURETOR SIZE	33,00 mm (1,30")
AIR JET	0.7
SPIGOT MOUNTING OUTSIDE DIAMETER	40
NEEDLE VALVE	-
SLIDE CUTAWAY	-
NEEDLE JET	P-8 (640 Series)
CARBURETOR SIZE IMPERIAL	1.30"
NEEDLE	5FP96
CARBURETOR SIZE METRIC	33.00 mm
PILOT JET	37.5 (VM28/486)
MAIN JET	127.5 (N100.604)
