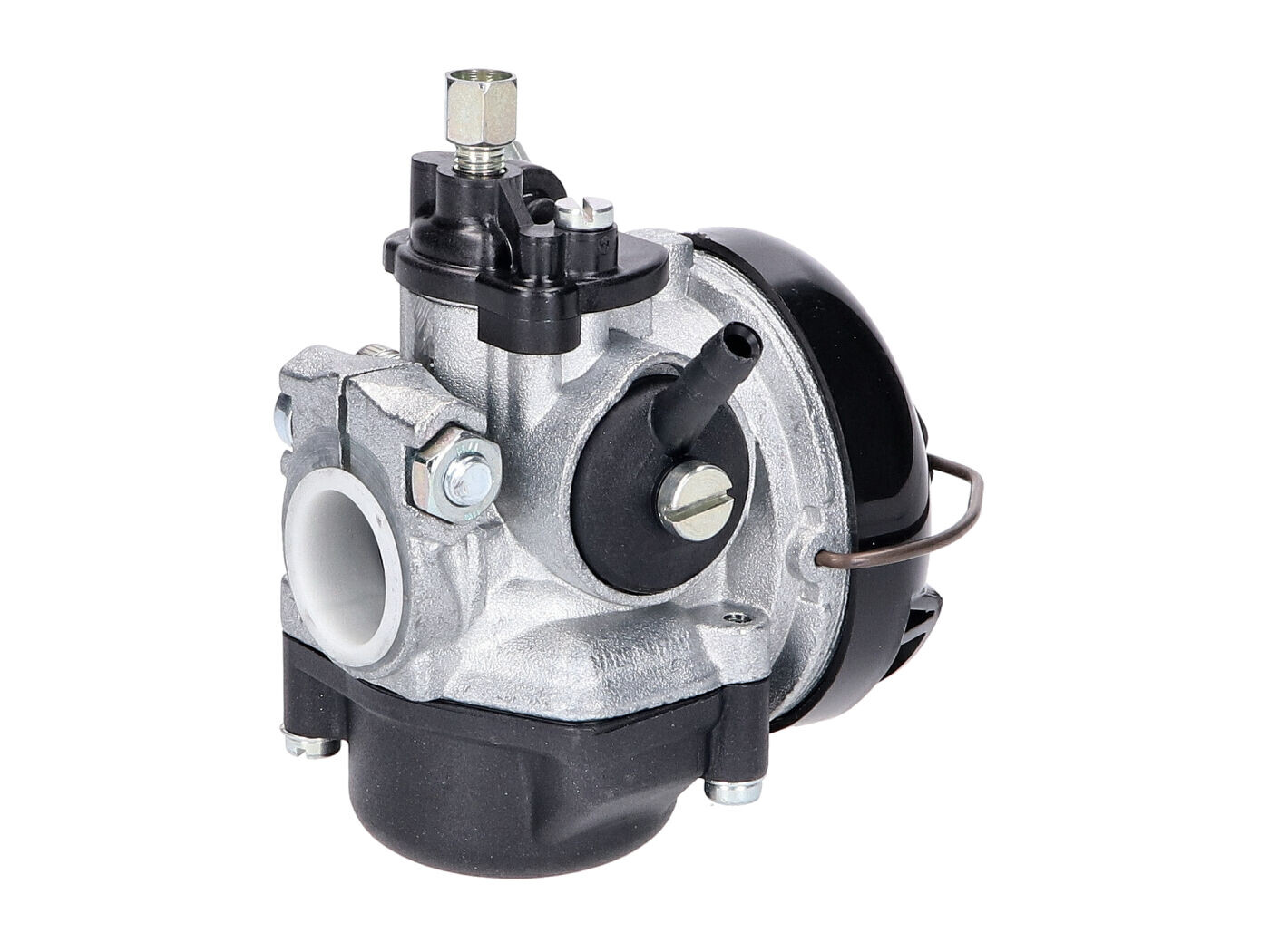

carburetor Dellorto SHA 14/12 L clamp fixation for moped

Dellorto tuning carburettor with clamping flange SHA 14-12 L suitable for moped tuning from 50cc to 70cc capacity. The air filter cartridge is mounted here directly on the carburettor, which limits the design to a minimum: optimal with little space. The short intake path is a performance bonus for high revving engines. The manually operated choke engages by pressing down and is only by actuating the throttle cable (full throttle) back to the original position.

Technical data:

Clamping flange: 18mm or 21mm (without reducing bushing)

Carburettor passage: 14mm

Air filter connection: 52.5mm

Main jet: 57, M5

Choke: direct operation via lever

Included in delivery is a Dellorto metal air filter.

OEM number for comparison purposes only: Dellorto 01515
