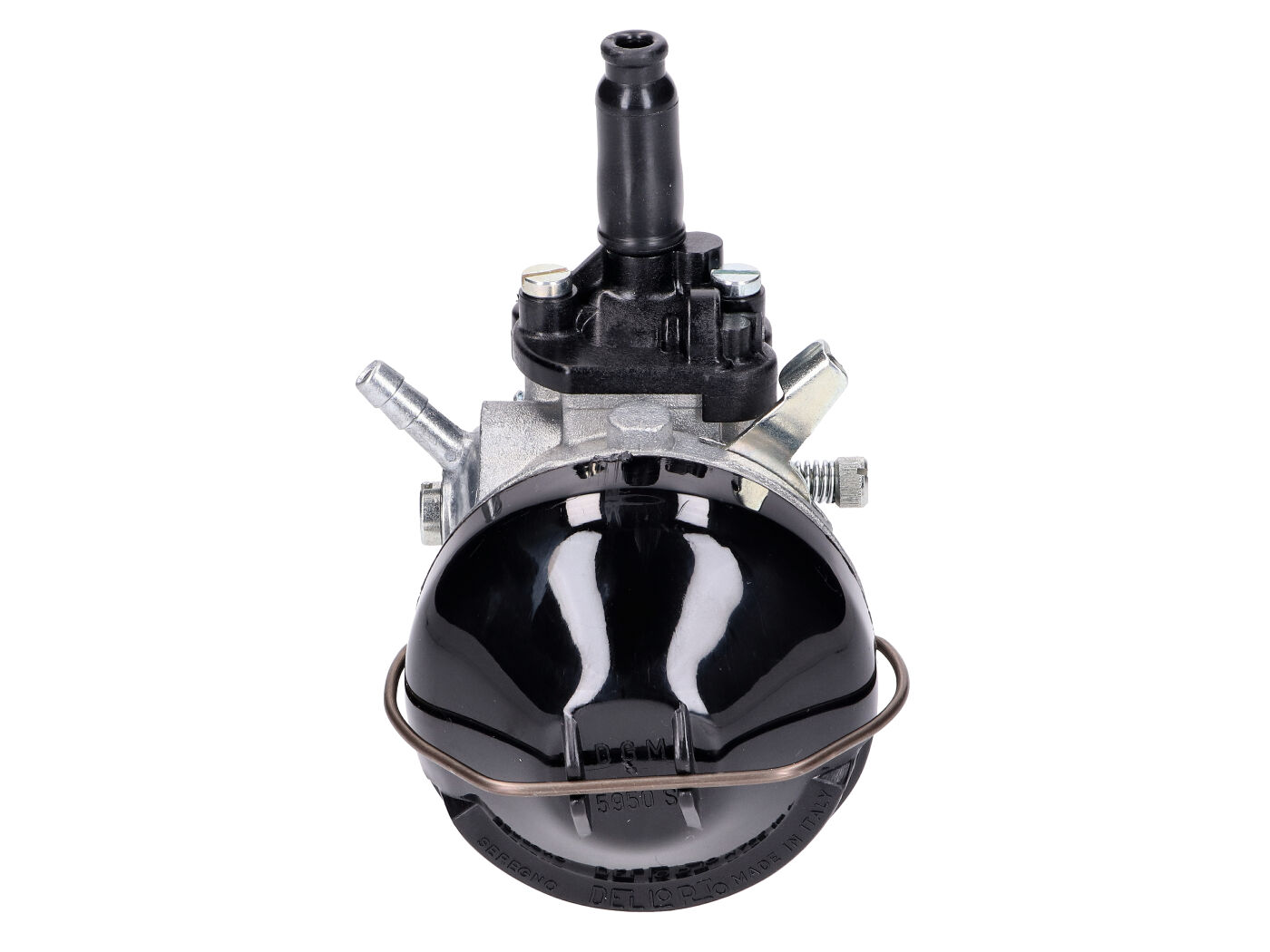

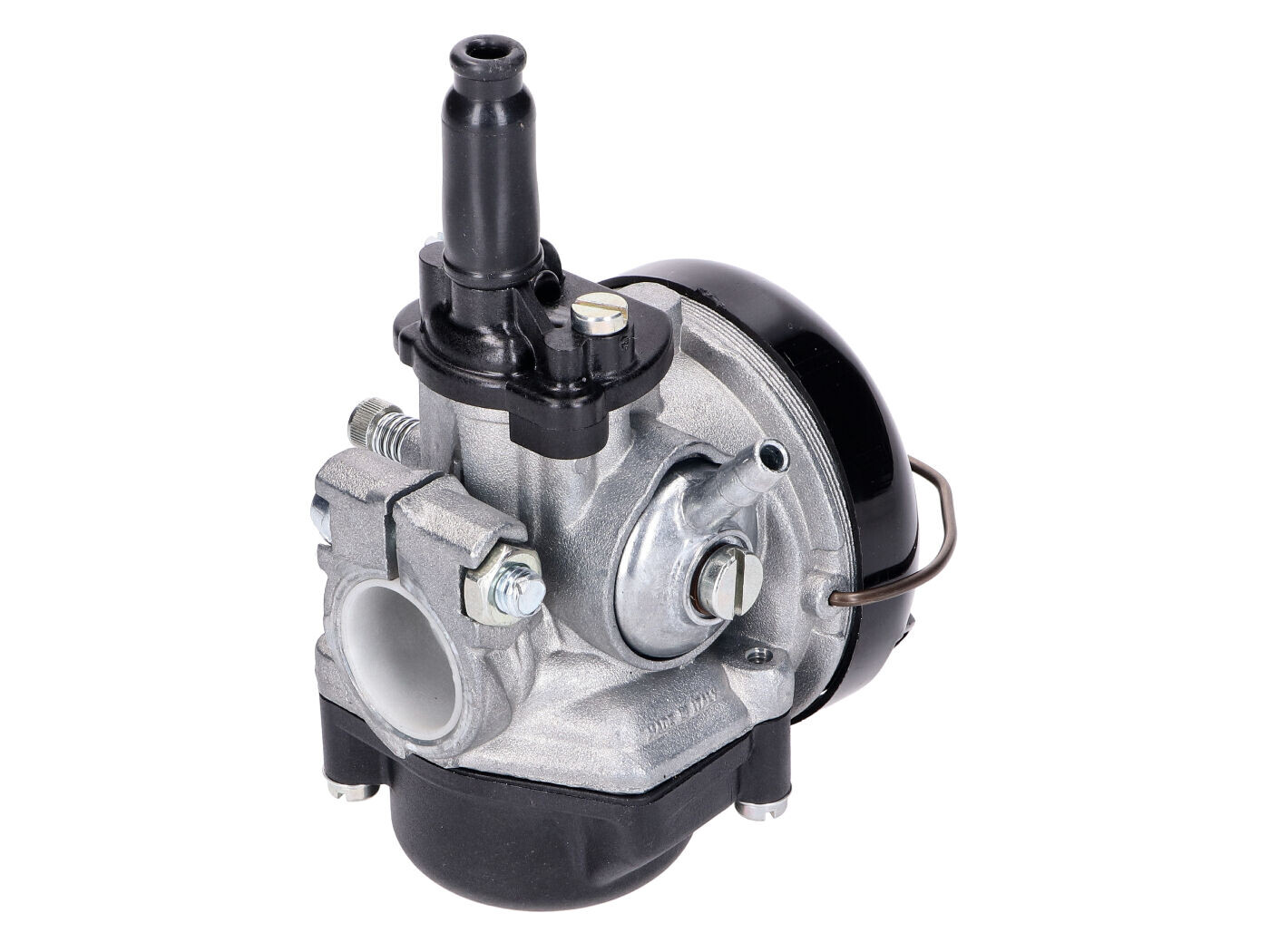

carburetor Dellorto SHA 16/16 w/ air filter, clamp fixation for moped

Tuning carburettor with clamping flange SHA 16-16 from Dellorto suitable for moped tuning with 50cc to 70cc capacity. The air filter cartridge is mounted directly on the carburettor, which limits the design to a minimum. Optimal with narrow space conditions. The short intake path is a performance bonus for high-revving engines.

Technical data:

Clamping flange: 21mm

Carburettor: 16mm

Air filter port: 59mm

Main jet: 82 M5

Choke: Direct operation via a lever

A Dellorto metal air filter is included in the delivery.
