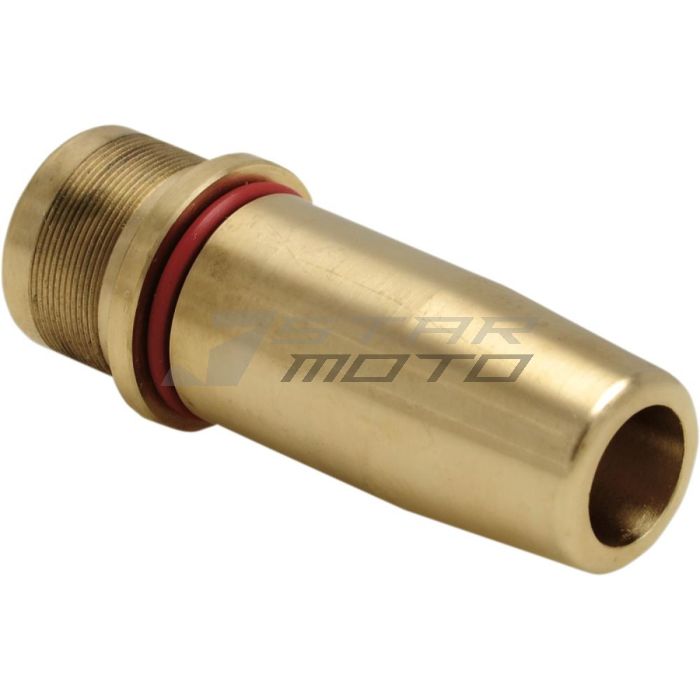

GUIDE VLV 78-83BT+.004MAG

Manganese Valve Guide

• Precision-machined guides
• Manganese bronze guide material is softer than nickel aluminum bronze valve guides
• Excellent heat conductivity which promotes long valve life
• Guides can be easily reamed with a battery-operated or electric drill and finished with a high-quality ball hone
• Eliminates the need for expensive honing equipment that would be required for nickel bronze valve guides
• Machined to accept OEM and aftermarket seals
• Made in the U.S.A.

Will require machining for seal installation. Use seals 0926-0974 and 0926-0795.

INSIDE DIAMETER	0,3755"
MATERIAL	Bronze
OUTSIDE DIAMETER	0,6290"
SIZE	Oversize (+0,004")
APPLICATION	Intake
UNITS	Each
PRODUCT NAME	Valve Guide
INSIDE DIAMETER IMPERIAL	0.3755"
SIZE IMPERIAL	Oversize (+0.004")
OUTSIDE DIAMETER IMPERIAL	0.6290"
