PISTON YFM700 PRO B

In stock
SKU
09102108
VERTEX
Special Price €204.00 Regular Price €251.00
Dispatching between 31.03.2026 and 01.04.2026
Monthly payment from 10.25€, when choosing ESTO instalment as the payment method.
Quick Overview

Piston Kit

  • All pistons are heat treated with a T-5 harden...

Piston Kit

  • All pistons are heat treated with a T-5 hardening and tempering cycle
  • All piston skirts are coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
  • Cast piston kits are gravity cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
  • Forged pistons are forged from 2618 aluminum for superior strength and durability
  • Forged High Compression pistons improve power and torque across entire rpm range
  • Big Bore pistons increase engine’s displacement, torque, and peak horsepower
  • Forged Replica pistons are forged OE replacements
  • Replica pistons and all rings are OEM replacements

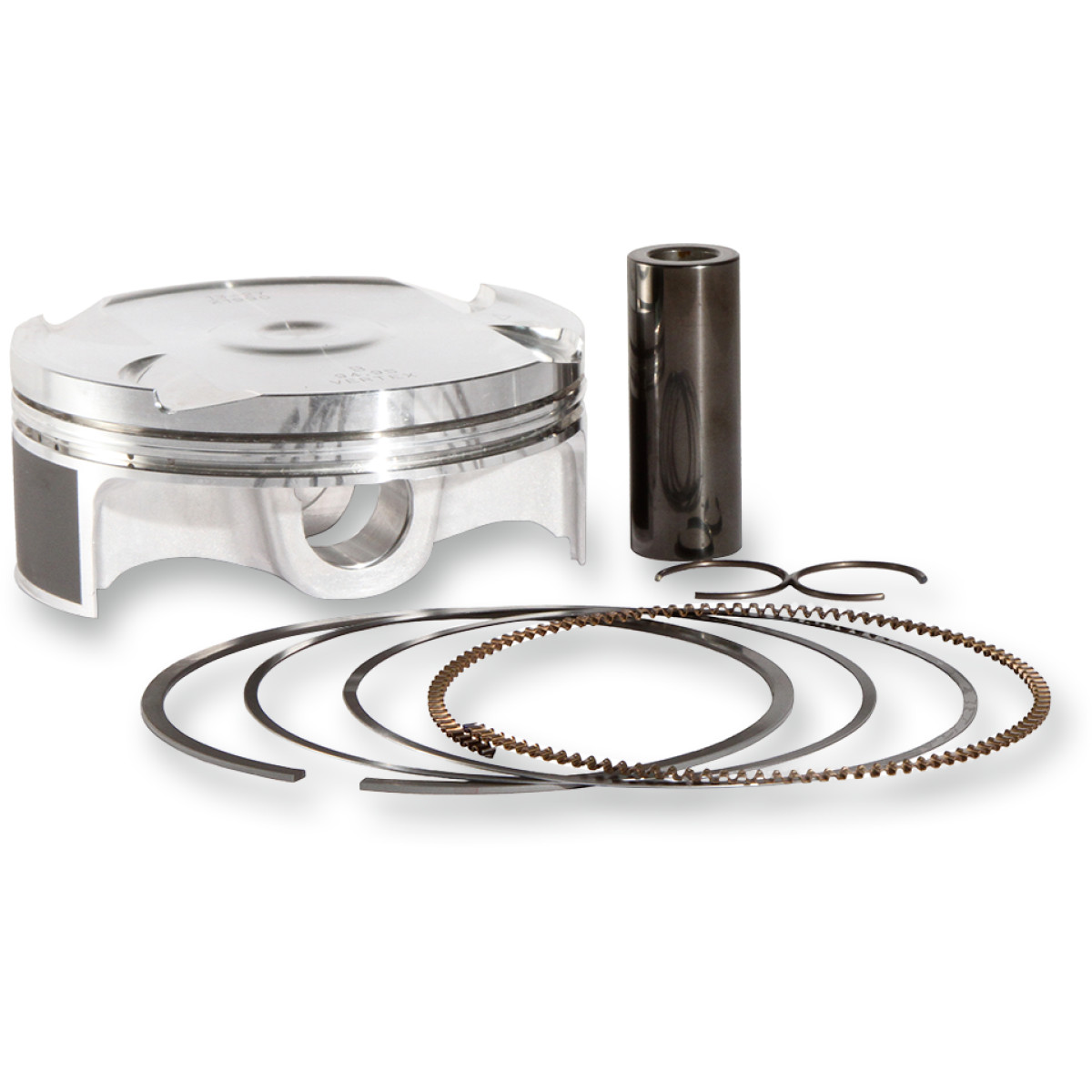

  • Kit include piston, rings, wrist pin and circlips
  • Replacement two-stroke piston rings sold individually; four-stroke piston rings sold as a set as needed
  • Top End Kits include Piston Kit and a Top End Gasket Kit, top-end bearing and cam chain.



DISPLACEMENT700 cc
COMPRESSION RATIO9,2:1
STYLECast Replica
UNITSKit
PRODUCT NAMEPiston Kit
PISTON MATERIALAluminum Alloy
PISTON DIAMETER101,96 mm
COMPRESSION RATIO IMPERIAL9.2:1
PISTON DIAMETER METRIC101.96 mm
CYLINDER DIAMETER METRIC102.00 mm
CYLINDER DIAMETER102,00 mm
More Information
Weight0.560000
Height98
Width116
BrandVERTEX
Lenght117
Barcode EAN13714205064193
AvailabilityIn the central warehouse
Supplier reference23623B
OutletNo
Ships in1-2 business days
CampainsHinnagarantii
Fitment chart (old)YAMAHA
YFM 700 FG 4X4 GRIZZLY 2008-2013
YFM 700 FGH 4X4 GRIZZLY HUNTER 2008-2013
YFM 700 FGP 4X4 GRIZZLY EPS 2007-2013
YFM 700 FGP DU 4X4 GRIZZLY EPS DUCKS UNLIMITED EDITION 2007-2010
YFM 700 FGP OH 4X4 GRIZZLY EPS OUTDOORSMAN EDITION 2007
YFM 700 FGP SE 4X4 GRIZZLY EPS SE 2010,2012-2013
YFM 700 FGP SE 4X4 GRIZZLY EPS SPECIAL EDITION 2007,2009
YFM 700 FGP SP 4X4 GRIZZLY EPS SE 2011
YFM 700 FGP SP 4X4 GRIZZLY EPS SPECIAL EDITION 2008
YFM 700 FGPH 4X4 GRIZZLY EPS HUNTER 2007-2013
YFM 700 FWAN 4X4 GRIZZLY EPS 2012-2013
YFM 700 FWAN 4X4 GRIZZLY EPS SE 2012-2013
YFM 700 R RAPTOR 2006-2015
YFM 700 RAPTOR 2013-2015
YFM 700 RSE RAPTOR SPECIAL EDITION 2007-2015
YFM 700 RSE2 RAPTOR SPECIAL EDITION 2 2007-2008
YFM 700 RSP RAPTOR 50TH ANNIVERSARY 2006
YFM 700 RYR RAPTOR GTYR EDITION 2007
YXR 700 F 4X4 RHINO 2008-2009,2011-2013
YXR 700 F DU 4X4 RHINO DUCKS UNLIMITED EDITION 2008-2009
YXR 700 F SE 4X4 RHINO SE 2012-2013
YXR 700 F SE 4X4 RHINO SPECIAL EDITION 2008
YXR 700 F SP 4X4 RHINO SPORT EDITION 2008-2009,2011-2013
YXR 700 F SP2 4X4 RHINO SPECIAL EDITION 2 2008
YXR 700 F SP2 4X4 RHINO SPORT EDITION 2 2009
YXR 700 FH 4X4 RHINO HUNTER 2008-2009,2011
YXR 700 FH 4X4 RHINO HUNTER EDITION 2013
YXR 700 FH 4X4 RHINO HUNTER REALTREE 2012
