SHOCKS AIR - TRIKE 14-25 - 13.

In stock

SKU

13110189

Special Price €2,128.00 Regular Price €2,421.00

Dispatching between 13.03.2026 and 16.03.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Monthly payment from 67.07€, when choosing ESTO instalment as the payment method.

13.6" length maximizes rear ride height on '17 and newer trikes utilizing OEM shock mount plates
Eliminates the need for a lift kit
Levels out trike models that sit low in the rear from the factory
Reduces dragging and scuffing of mufflers when rolling thru drain basins, backing up to curbs, or loading on a trailer
Easier steering due less trail in the front end
Legend AIR Suspensions systems set the high mark in ultimate ride quality
Exclusive Aramid Fiber air spring technology provides spring rate adjustability
Air springs maximize wheel travel and adjust to any desired ride height
Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
Type III hard-coat black anodized machined aluminum bodies
Low friction sealing system and sliding bearings for improved performance and feel
High flow piston reacts quickly for improved fluid flow management
Deflective disc valving self-adjusts to frequency and ensures controlled performance

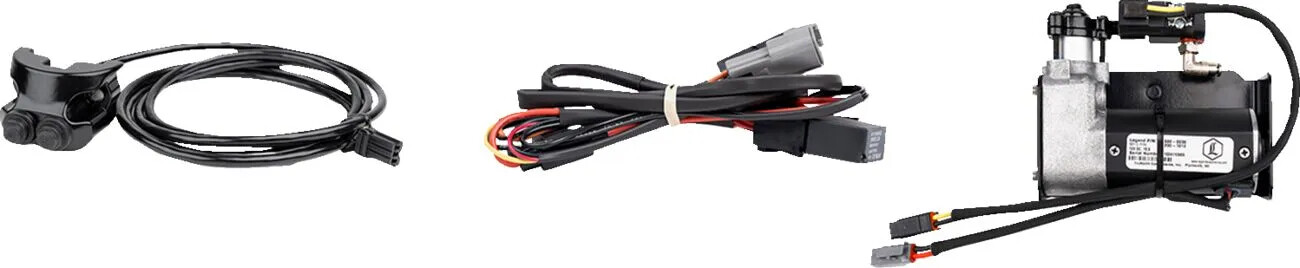

Includes prewired air compressor with model specific mounting
Complete wire harness installs with three easy Deutsch connections
Includes OEM-looking black handlebar mounted control for easy "on-the-go" adjustability
Optional chrome handlebar mounted control sold separately (Part # 0616-0207)
Optional fairing mounted matching gauges (Part #'s 2212-0484, 2212-0485, 2212-0492, 2212-0493, 2212-0494) sold separately
Assembled by hand in Sturgis, SD USA

Shocks are designed to be installed using the OEM lower shock mount brackets. Not compatible with aftermarket lift kits.

Brand

LEGEND SUSPENSION

Vendor Part Number

1311-0189

Adjustment Type

Adjustable Air Spring

Color/Finish

Black, Anodized

Extended Length

346,00 mm (13,625")

Material

Billet Aluminum, Aramid Fiber

Model

Air

Mounting Position

Rear

Product Name

Shock Absorber

Reservoir Location

Internal

Type

Air Twin-Tube

Units

Pair
