VARI LOAD DIGITAL ADJ. LOADEQU

In stock

SKU

21201438

Special Price €99.00 Regular Price €112.00

Dispatching between 04.02.2026 and 06.02.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Monthly payment from 6.08€, when choosing ESTO instalment as the payment method.

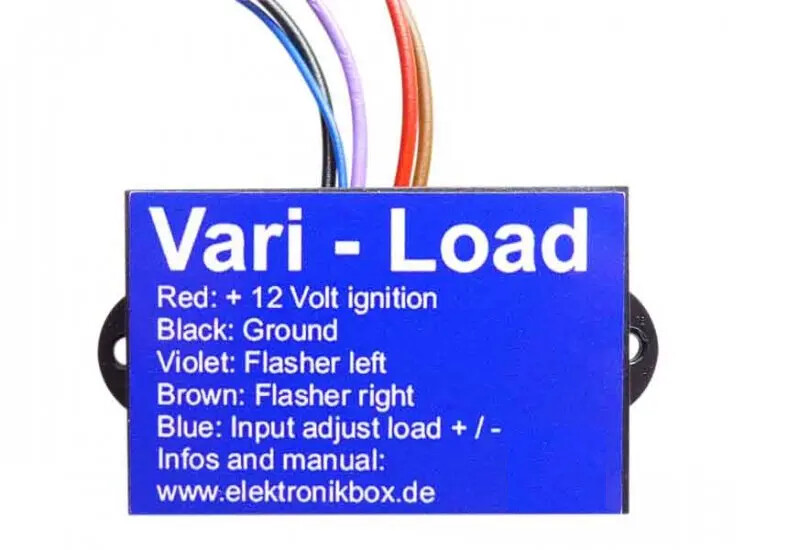

The Vari Load is a programmable Load-Equalizer that affords you to use LED Flasher in any bike.
The Vari Load's power is adjusted using the thin blue cable.
Simply hold the blue cable against +12 volts and the load will slowly increase in 50 steps up to approximately 10 watts.
If you hold the blue cable against ground, the load will decrease until it reaches 0 watts.
As soon as you disconnect the cable from ground or +12 volts, the set load value is saved and recalled the next time you turn it on.
A complete cycle through all available power values ??takes approximately 20 seconds.
The built-in LED flashes up to 50 times when the power value changes, indirectly indicating the set value through its number of flashes.
As soon as one of the two limits (0 watts or approximately 10 watts) is reached, it lights up continuously.
Dimensions:56 mm x 37 mm x 17 mm
Body material:ABS
Input voltage range:7 - 18 Volt
Connections:Inputs 0,14 mm², Outputs 0,75 qmm
Output power range: Between 2 x 1 Watt and 2 x 15 Watt
Maximum ambience temperature:80 degree Celsius

Brand

AXEL JOOST ELEKTRONIK

Vendor Part Number

VARI LOAD

Material

ABS

Product Name

Load-Equalizer

Type

Digital

Units

Each
