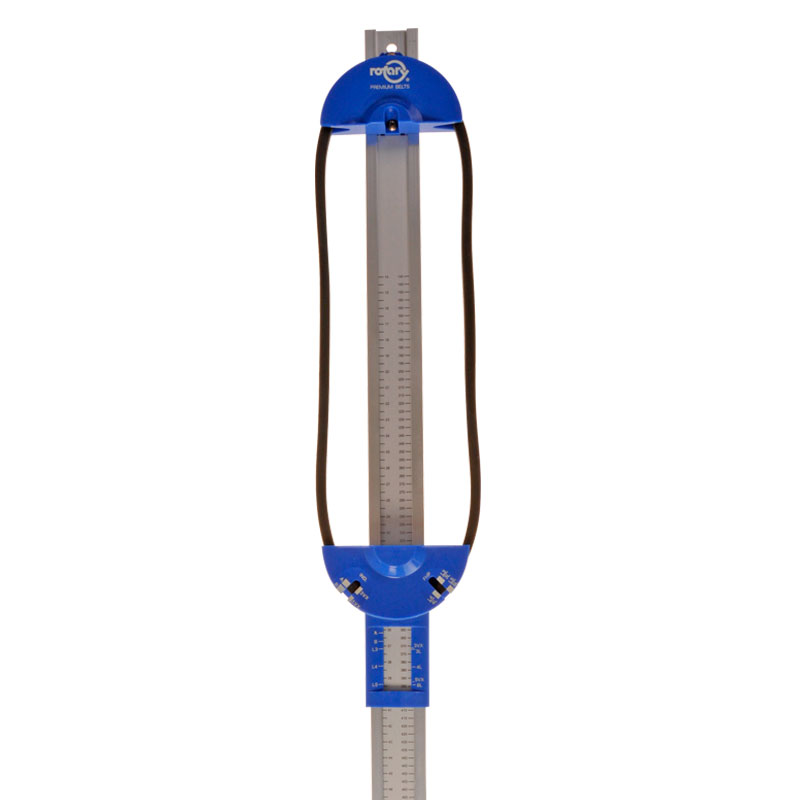

Rotary Belt measuring gauge, 3/8, 1/2, 5/8 belts

Belt measure

With the Rotary belt measure you can accurately and easily measure belts of different profiles A, B, L3, L4, L5, 3VX and 5VX.

General belts used in lawn mowers
are usually L3 (3/8?), L4 (1/2?) and L5 (5/8?) profile belts.
The belt is simply placed in the groove of the gauge, and you automatically see the profile of the belt
and on the measuring scale you read the belt measurement in inches or millimeters at the profile.


Dimensions:
3/8, 1 For /2 and 5/8 inch belts
length 110
L3 (3/8) belt back thickness 9.5 mm Note! 3/8 belt reversible when measuring
L4 (1/2) belt back thickness 12.7 mm
L5 (5/8) belt back thickness 15.8 mm


ROTARY is A US company that manufactures over 11 million lawnmower blades
a year for the world's leading mower manufacturers.Continuous product development guarantees the best cutting performance for your machine.
