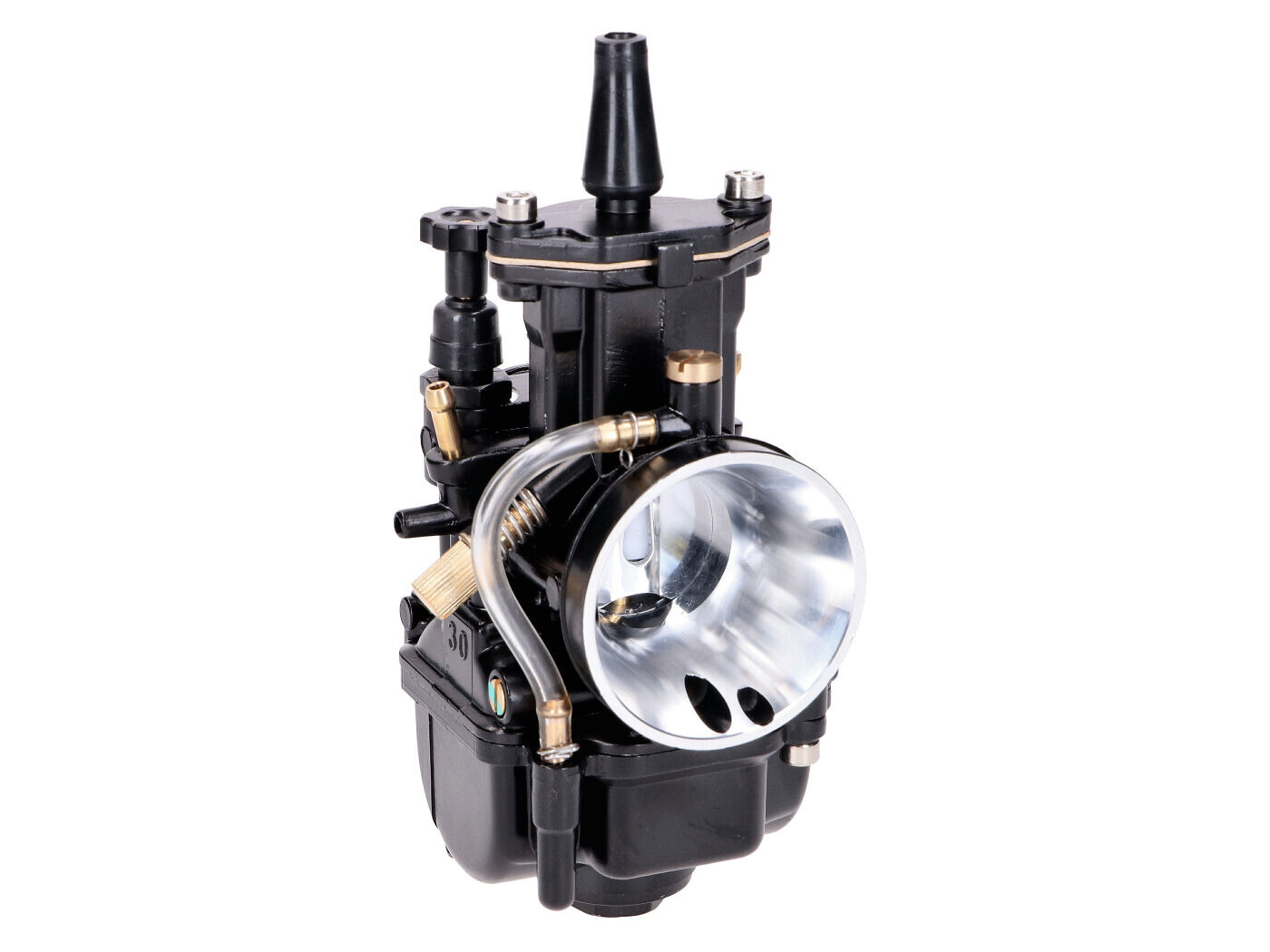

Carburetor NARAKU Black Edition flat slide V.2 Racing 30mm

The Naraku flat slide V.2 Racing carburetor in the Black Edition is the ideal choice for tuning projects with increased displacement.
The precision CNC-machined intake tract and the proven Powerjet function improve the air flow and thus ensure optimized engine response. At full load, the Powerjet function also increases performance.
Thanks to the wide range of available main and secondary jets, carburetor needles and other accessories for PWK carburetors, there are extensive options for precise tuning. An often overlooked but important feature is the adaptability of the mixing tube. This influences the correction air or brake air and has an effect at both low and high engine speeds when the slide is fully open. The aim is to achieve a constantly balanced fuel/air ratio over the entire speed range. Without the correction air, the fuel supply would increase faster than the air supply as the engine speed increases, which could lead to over-greasing at high engine speeds.
The carburetor is also equipped with a manual choke for easy operation.

Main jet: 140 (M5)

Additional jet: 55 (M6)

Powerjet: M5

Connection width of intake manifold: 35mm

Connection width air filter: 49mm

30mm
