SPARK PLUG NGK BR9EIX

Be the first to review this product

In stock

SKU

BR9EIX

Special Price €22.50 Regular Price €28.00

Factory order, ask about availability: [email protected]

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Monthly payment from 3.83€, when choosing ESTO instalment as the payment method.

Quick Overview

Iridium IX Spark Plug

The ultimate in the evolution of sp...

Details

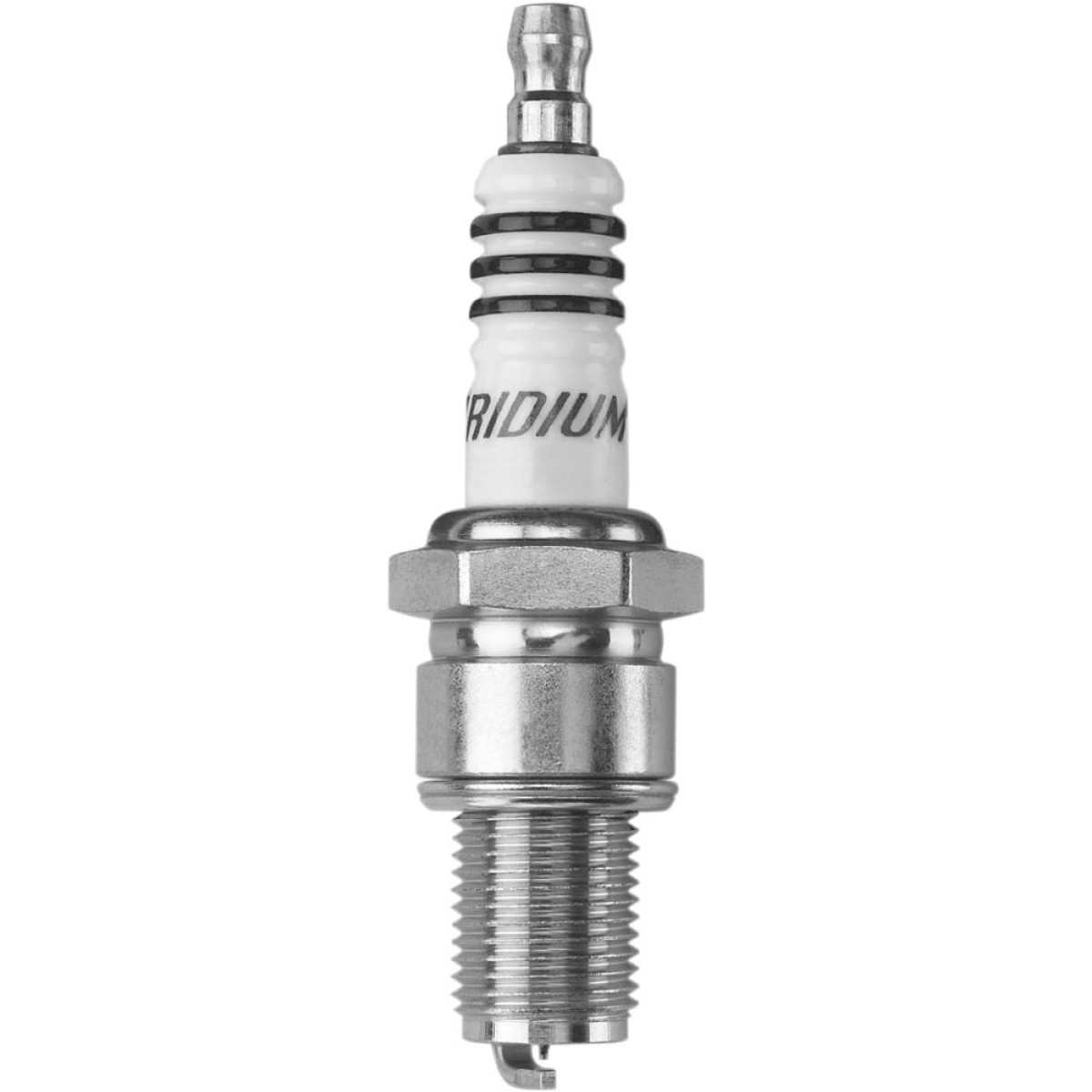

Iridium IX Spark Plug

The ultimate in the evolution of spark plug technology and performance from the industry leader
The iridium electrode is 25% smaller than a platinum electrode, and it's just 1/4 the size of a conventional nickel electrode
Ultra-small diameter center electrode reduces voltage requirement and extends ignition system life
New metal shell plating has enhanced anti-corrosion qualities

HEAT RANGE	9
MODEL	Iridium IX
TERMINAL CONFIGURATION	Removable Nut
THREAD SIZE	14 mm
STYLE	BR9EIX
TYPE	Resistor Type
UNITS	Each
PRODUCT NAME	Spark Plug
CENTER ELECTRODE TYPE	Necked Down
ELECTRODE TIP MATERIAL	Iridium
CENTER ELECTRODE PROJECTION	Non-Projected
THREAD REACH	19,1 mm (3/4")
HEX SIZE	20,6 mm (13/16")
GROUND ELECTRODE CONFIGURATION	Single
SPARK GAP	0,8 mm (0,031")
GROUND ELECTRODE SHAPE	Grooved
ELECTRICAL RESISTANCE	5k Ohms
SPARK GAP IMPERIAL	0.031"
SPARK GAP METRIC	0.8 mm

More Information

More Information
Weight	0.060000
Barcode EAN13	87295139813
Height	22
Width	24
Manufacturer	NGK SPARK PLUGS
Lenght	87
Supplier reference	3981
Availability	In the central warehouse
Outlet	No
Ships in	1-3 business days
Campains	Hinnagarantii
Fitment chart (cat 1)	APRILIA AF1 50 FUTURA 1991-1992 ETX 125 1984-1998 MOJITO 50 CUSTOM 2005 MX 50 2003-2004 RED ROSE 50 CLASSIC 1988-1994 RS 50 2006-2013 RX 50 1989-2018 RX 50 FACTORY 2019 RX 50 R 2002-2004 SCARABEO 50 2009 SCARABEO 50 STREET 2007-2016 SPORTCITY ONE 50 AC 2008-2010 SR 50 LC STREET 2004-2017 SR 50 MOTARD 2013-2017 SR 50 R LC 2005-2017 SR 50 R LC DITECH FACTORY 2006-2012 SR 50 R LC DITECH FACTORY REPLICA 2012 SR 50 R LC EDFI FACTORY 2008 SR 50 R LC FACTORY 2013 SR 50 R LC FACTORY REPLICA 2013 SR 50 R LC REPLICA 2011-2015 SR 50 REPLICA LC 2004-2005 SX 50 2006-2019 TUAREG 125 RALLY 1985-1987 TUAREG 125 WIND 1987-1989 TUAREG 50 RALLY 1988-1990 TUAREG 50 WIND 1988-1989 TUONO 50 2003-2005 ARCTIC CAT BEARCAT 1 440 1999-2000 BEARCAT 2 440 1999-2000 BEARCAT 340 1995-2000 BEARCAT 440 1996-1998 BEARCAT 550 1995-1996 BEARCAT 550 WIDE TRACK 1997-2000,2002 BEARCAT 570 2006-2014 BEARCAT 570 LT 2004-2005 BEARCAT 570 XT 2009-2014 BEARCAT 570 XTE 2014 CHEETAH 340 1994 CHEETAH 440 1992-1994 CHEETAH 440 TOURING 1991 CHEETAH 500 TOURING 1989-1990 CHEETAH 550 1994 COUGAR 440 1991-1994 COUGAR 500 1989-1990 COUGAR 550 1995-1998 COUGAR 550 DELUXE 1998 COUGAR MOUNTAIN CAT 440 1993-1994 COUGAR MOUNTAIN CAT 550 1995-1998 CROSSFIRE 1000 2007-2009 CROSSFIRE 1000 SNO PRO 2007-2009 CROSSFIRE 1000 SNO PRO LIMITED 2009 CROSSFIRE 5 500 2007-2009 CROSSFIRE 6 600 2006-2007 CROSSFIRE 6 600 SNO PRO 2006 CROSSFIRE 7 700 2006 CROSSFIRE 7 700 SNO PRO 2006 CROSSFIRE 8 800 2007-2011 CROSSFIRE 8 800 LIMITED 2010-2011 CROSSFIRE 8 800 SNO PRO 2007-2011 CROSSFIRE 8 800 SNO PRO LIMITED 2009,2011 CROSSFIRE R 1000 2009 CROSSFIRE R 1000 LIMITED 2009 CROSSFIRE R 8 800 2009 CROSSFIRE R 8 800 LIMITED 2009 EL TIGRE EXT 530 1989-1991 EL TIGRE EXT 550 MOUNTAIN CAT 1991-1992 EL TIGRE EXT 550 SPECIAL 1991-1992 EXT 550 1993-1994 EXT 550 EFI MOUNTAIN CAT 1993 EXT 580 1994-1996 EXT 580 EFI 1993-1998 EXT 580 EFI DELUXE 1995-1997 EXT 580 EFI MOUNTAIN CAT 1993-1996 EXT 580 EFI MOUNTAIN CAT CUB 1994 EXT 580 POWDER SPECIAL 1995-1996 EXT 580 Z 1993 EXT 600 TRIPLE 1997-1998 F 570 2008-2014 F 800 LXR 2012-2013 F 800 SNO PRO 2012 F 800 SNO PRO LTD 2013 F 800 SNO PRO RR 2013 F1000 2007-2008 F1000 LXR 2007-2008 F1000 SNO PRO 2007-2009 F5 500 2007-2008,2013-2014 F5 500 FIRECAT 2003-2006 F5 500 FIRECAT SNO PRO 2003-2006 F5 500 LXR 2007-2012 F6 600 2007-2008 F6 600 EFI FIRECAT 2004-2006 F6 600 EFI FIRECAT EXT 2004-2005 F6 600 EFI FIRECAT SNO PRO 2004-2006 F6 600 FIRECAT 2004 F6 600 LXR 2007-2008 F6 600 R EFI FIRECAT 2006 F6 600 SNO PRO 2007-2011 F7 700 EFI FIRECAT 2003-2006 F7 700 EFI FIRECAT EXT 2004-2005 F7 700 EFI FIRECAT TONY STEWART 2006 F7 700 FIRECAT 2004-2006 F7 700 FIRECAT SNO PRO 2003-2006 F7 700 R EFI FIRECAT 2006 F8 800 2007-2010 F8 800 EXT 2011 F8 800 LIMITED 2009 F8 800 LXR 2007-2011 F8 800 SNO PRO 2007-2010 F8 800 TONY STEWART LIMITED 2007 JAG 340 1998 JAG 340 DELUXE 1998-1999 JAG 440 1991-1999 JAG 440 DELUXE 1991-1999 JAG 440 L/T 1-SPD 1992-1993 JAG 440 L/T 2-SPD 1992-1993 JAG 440 LC 1996 JAG 440 LONG TRACK 1991 JAG 440 SPECIAL 1992 JAG 440 Z 1993-1994 KING CAT 900 1M 2004-2005 KING CAT 900 1M 162 2004-2005 KING CAT 900 1M EFI 2005 KING CAT 900 1M EFI 162 2005 KING CAT 900 EFI 2006 LYNX 340 MOUNTAIN CAT 1992-1993 M 800 2012-2013 M 800 HCR 2012-2013 M 800 SNO PRO 2013 M 800 SNO PRO 50TH 2012 M 800 SNO PRO LTD 2013 M 8000 2014-2015,2018 M 8000 HCR 2014-2017 M 8000 LIMITED 2014-2017 M 8000 LIMITED ES 2014-2017 M 8000 SNO PRO 2014-2019 M1000 2007-2009 M1000 153 2007-2009 M1000 153 SNO PRO 2007-2009 M1000 162 2007-2009 M1000 162 SNO PRO 2007,2009-2011 M1000 162 SNO PRO LIMITED 2009 M1000 SNO PRO 2007-2011 M1000 SNO PRO LIMITED 2009 M5 500 2005 M5 500 141 2005 M5 500 ATTACK 20 2006 M6 600 2007-2011 M6 600 141 2007 M6 600 141 CHALLENGER 2006 M6 600 153 2007 M6 600 153 ATTACK 20 2006 M6 600 153 CHALLENGER 2006 M6 600 ATTACK 20 2006 M6 600 CHALLENGER 2006 M6 600 EFI 2005 M7 700 141 CHALLENGER 2006 M7 700 CARB 153 ATTACK 20 2006 M7 700 CARB 153 CHALLENGER 2006 M7 700 CARB ATTACK 20 2006 M7 700 CARB CHALLENGER 2006 M7 700 CHALLENGER 2006 M7 700 EFI 2005 M7 700 EFI 153 ATTACK 20 2006 M7 700 EFI 153 ATTACK 20 LIMITED 2006 M7 700 EFI 153 CHALLENGER LIMITED 2006 M7 700 EFI 162 ATTACK 20 2006 M7 700 EFI 162 ATTACK 20 LIMITED 2006 M7 700 EFI 162 CHALLENGER 2006 M7 700 EFI 162 CHALLENGER LIMITED 2006 M7 700 EFI ATTACK 20 2006 M7 700 EFI ATTACK 20 LIMITED 2006 M7 700 EFI CHALLENGER 2006 M7 700 EFI CHALLENGER LIMITED 2006 M7 700 EFI LIMITED 2005 M8 800 2007-2011 M8 800 141 2007 M8 800 153 2007-2010 M8 800 153 HCR 2009-2011 M8 800 153 LIMITED 2010 M8 800 153 SNO PRO 2008-2011 M8 800 153 SNO PRO LIMITED 2009,2011 M8 800 162 2007-2009,2011 M8 800 162 SNO PRO 2009-2011 M8 800 HCR 2009-2011 M8 800 LIMITED 2010 M8 800 SNO PRO 2007-2011 M8 800 SNO PRO LIMITED 2009,2011 MOUNTAIN CAT 1000 2001-2002 MOUNTAIN CAT 500 2002 MOUNTAIN CAT 500 EFI 2001 MOUNTAIN CAT 570 2002 MOUNTAIN CAT 570 1M 2003-2004 MOUNTAIN CAT 600 1M EFI 2003-2004 MOUNTAIN CAT 600 1M EFI 136 2003 MOUNTAIN CAT 600 1M EFI 144 2003 MOUNTAIN CAT 600 EFI 2001-2002 MOUNTAIN CAT 600 EFI LE 2002 MOUNTAIN CAT 800 2001-2002 MOUNTAIN CAT 800 1M 2004 MOUNTAIN CAT 800 1M 151 2004 MOUNTAIN CAT 800 1M EFI 2003 MOUNTAIN CAT 800 1M EFI 144 2003 MOUNTAIN CAT 800 1M EFI 151 2003 MOUNTAIN CAT 800 EFI 2002 MOUNTAIN CAT 800 EFI LE 2002 MOUNTAIN CAT 800 LE 2002 MOUNTAIN CAT 900 1M 2004 MOUNTAIN CAT 900 1M 151 2004 MOUNTAIN CAT 900 1M 159 2004 MOUNTAIN CAT 900 1M EFI 2003-2004 MOUNTAIN CAT 900 1M EFI 144 2003 MOUNTAIN CAT 900 1M EFI 151 2003-2004 MOUNTAIN CAT 900 1M EFI 159 2004 PANTERA 1000 2000-2001 PANTERA 440 1989-1992 PANTERA 550 1993-1994,2002-2005 PANTERA 580 1995-1999 PANTERA 580 EFI 2000-2001 PANTERA 600 EFI 2002-2005 PANTERA 800 1998-1999 PANTERA 800 EFI 2002-2004 PANTHER 340 1998-2000 PANTHER 370 2001,2004,2006-2008 PANTHER 440 1989-1993,1997-2002 PANTHER 440 DELUXE 1991-1996 PANTHER 440 ESR 2001 PANTHER 440 LC 1996 PANTHER 440 MOUNTAIN CAT 1991 PANTHER 550 1997-2001 PANTHER 570 2004-2007 PANTHER 570 ESR 2002-2003 PANTHER 570 R 2002 POWDER EXTREME 600 1997-1998 POWDER SPECIAL 500 EFI 1999-2000 POWDER SPECIAL 600 1997-2000 POWDER SPECIAL 600 EFI 1997-2000 POWDER SPECIAL 700 1999-2000 PROWLER 440 1990-1992 PROWLER 440 EFI 1993-1994 PROWLER 440 MOUNTAIN CAT 1991-1992 PROWLER 440 SPECIAL 1991-1992 PROWLER 440 Z 1993 PROWLER 550 1995 PROWLER 550 EFI 4X4 2009 PROWLER 550 EFI 4X4 XT 2010-2013 PUMA 340 1994-1997 PUMA 340 DELUXE 1994-1997 SABERCAT 500 2004 SABERCAT 500 EFI 2005-2006 SABERCAT 500 LX 2004 SABERCAT 500 LX EFI 2005-2006 SABERCAT 600 2004 SABERCAT 600 EFI 2004-2005 SABERCAT 600 EFI EXT 2004-2005 SABERCAT 600 LX 2004 SABERCAT 600 LX EFI 2004-2006 SABERCAT 700 EFI 2004-2005 SABERCAT 700 EFI EXT 2004-2006 SABERCAT 700 LX EFI 2004-2006 SNO PRO 500 2010-2014 SUPER JAG 440 1989-1992 T 500 2008-2009 T 570 2008-2014 THUNDERCAT 1000 1998-2001 THUNDERCAT 1000 R 2002 THUNDERCAT 900 1993-1997 THUNDERCAT MOUNTAIN CAT 1000 1999-2000 THUNDERCAT MOUNTAIN CAT 900 1994-1997 TRIPLE TOURING 600 1999-2001 WILDCAT 650 1989-1990 WILDCAT 700 1991-1993 WILDCAT 700 EFI 1991-1996 WILDCAT 700 EFI MOUNTAIN CAT 1992-1996 WILDCAT 700 MOUNTAIN CAT 1991-1993 WILDCAT 700 TOURING 1995 XF 800 CROSSTOUR 2013 XF 800 LXR 2012-2013 XF 800 SNO PRO 2012-2013 XF 800 SNO PRO HIGH COUNTRY 2012-2013 XF 800 SNO PRO HIGH COUNTRY LTD 2013 XF 800 SNO PRO LTD 2013 XF 8000 CROSS COUNTRY LIMITED 2015 XF 8000 CROSS COUNTRY SNO PRO 2014 XF 8000 CROSSTOUR 2014-2015 XF 8000 HIGH COUNTRY LIMITED 2014-2016 XF 8000 HIGH COUNTRY SNO PRO 2014 XF 8000 LXR 2014-2015 XF 8000 SNO PRO 2014-2015 Z 370 1999-2007 Z 370 E 2000 Z 370 ES 2001-2003 Z 370 LX 2004-2007 Z 440 1995-2002 Z 440 E 2000 Z 440 ES 2001-2002 Z 440 ESR 2003 Z 440 LX 2004-2006 Z 570 2002-2007 Z 570 ESR 2002-2003 Z 570 LX 2004-2007 Z 570 SS 2002 ZL 440 1997-2000 ZL 500 1998-2000,2002 ZL 500 EFI 1999 ZL 500 ESR EFI 2001 ZL 550 2001-2003 ZL 550 E 2000 ZL 550 EFI 2000 ZL 550 ESR 2001-2003 ZL 580 E EFI 2000 ZL 600 1999-2000 ZL 600 EFI 1999-2003 ZL 600 EFI SS 2002-2003 ZL 600 ESR EFI 2001-2003 ZL 600 ESR EFI SS 2003 ZL 700 2000 ZL 800 EFI 2002 ZL 800 EFI SS 2002-2003 ZL 800 ESR 2001 ZL 800 ESR EFI 2002-2003 ZR 440 1994-1998 ZR 440 SNO PRO 2000-2002 ZR 500 1998-2001 ZR 500 CCE 2002 ZR 500 EFI 1999-2001 ZR 580 1994-1996 ZR 580 EFI 1995-1997 ZR 600 1998-2002 ZR 600 EFI 1999-2001 ZR 700 1994-1995,1999-2000 ZR 800 2001-2002 ZR 800 EFI CCE 2002 ZR 800 EFI SNO PRO 2003 ZR 8000 LIMITED 2014-2015 ZR 8000 LIMITED ES 2016 ZR 8000 LXR 2014-2015 ZR 8000 RR 2014-2016 ZR 8000 SNO PRO 2014-2016 ZR 900 2003-2005 ZR 900 EFI 2004-2006 ZR 900 EFI SNO PRO 2004-2006 ZR 900 SNO PRO 2003-2005 ZRT 600 1996-2002 ZRT 800 1995-2001 BETA REV-3 50 2005-2008 REV-3 80 2005-2008 RR 50 2002-2003,2009-2014 RR 50 ENDURO 2002-2003,2009-2014 RR 50 ENDURO FACTORY 2012-2013 RR 50 ENDURO STANDARD 2012-2014 RR 50 FACTORY 2012-2013 RR 50 MOTARD 2003-2017 RR 50 MOTARD SKULL 2011 RR 50 MOTARD STANDARD 2012-2014 RR 50 MOTARD TRACK 2011-2017 RR 50 STANDARD 2012-2014 BMW R 69 1960 R 69 S 1960-1964,1966-1969 CAGIVA ALETTA ORO 125 S1 1985 ALETTA ORO 125 S2 1986-1987 ELEFANT 125 1987-1988 ELEFANT 125 LUCKY EXPLORER 1989-1990 ELEFANT 200 1984-1986 FRECCIA 125 1987-1990 FRECCIA 125 LUCKY EXPLORER 1990 MITO 125 2001-2007 MITO 125 EV EVOLUTION 2000 MITO 125 SP525 2008-2010 N1 125 PLANET 1998-2004 RAPTOR 125 2003-2010 ROADSTER 125 1997-2000 SUPERCITY 125 1992-1999 W8 125 1992-2000 DERBI ATLANTIS 100 2001-2002 ATLANTIS 50 2010,2012 ATLANTIS 50 AC 2003-2005 ATLANTIS 50 AIR 2003-2004 ATLANTIS 50 BULLET 2002-2008 ATLANTIS 50 CITY 2004-2009 ATLANTIS 50 LC 2000-2003 ATLANTIS 50 RED BULLET 2004-2006 BOULEVARD 50 2010-2017 DRX 200 4T 2004-2008 PADDOCK 50 LC 1996-1999 PREDATOR 50 LC 1999-2002 RAMBLA 125 2008-2013 SENDA 50 DRD SM 2003-2004 SENDA 50 DRD SM EVO 2008,2010-2012 SENDA 50 DRD SM PRO 2006-2013 SENDA 50 DRD SM RACING 2006-2013 SENDA 50 DRD SM X-TREME 2012-2013 SENDA 50 R 1995-1996,2000-2003 SENDA 50 R BLACK DEVIL 2004 SENDA 50 R RACER 2004 SENDA 50 R X-RACE 2005-2011 SENDA 50 R X-TREME 2003,2005-2012 SENDA 50 SM BLACK EDITION 2004 SENDA 50 SM X-RACE 2005-2011 SENDA 50 SM X-TREME 2003-2012 SONAR 50 2010-2012 FANTIC CABALLERO 50 E CASA 2007-2020 CABALLERO 50 E PERFORMANCE 2015-2020 CABALLERO 50 M MOTARD CASA 2007-2020 CABALLERO 50 M MOTARD PERFORMANCE 2015-2020 TZ 125 CS CROSS SCUDERIA 2T 2012 GAS GAS EC 125 1997-2010 EC 125 HALLEY 2011 EC 125 RACING 2009-2011,2013 EC 125 SIXDAYS 2009-2011 EC 50 2003-2006 GENERIC TRIGGER 50 SM 2006-2017 TRIGGER 50 SM COMPETITION 2008-2017 TRIGGER 50 SM ONE 2011-2017 TRIGGER 50 X 2006-2017 TRIGGER 50 X COMPETITION 2008-2013 GILERA D.N.A 50 2000-2002 D.N.A 50 GP EXPERIENCE 2003-2005,2007-2008 EASY MOVING 50 AC 1996-1997 GSM 50 1999-2000,2002-2003 H@K 50 2002 ICE 50 2001-2003 RCR 50 2005-2006 RCR 50 ENDURO 2003-2004 RCR 50 SUPERMOTO 2004 RRT 125 NEBRASKA 1985-1987 RUNNER 125 FX 1997-1999 RUNNER 125 FX DD 1999,2001-2003 RUNNER 125 FX DD SP 1999-2003 RUNNER 180 FXR 1997-1999 RUNNER 180 FXR DD 2000-2002 RUNNER 180 FXR DD SP 1999-2003 RUNNER 50 1997-1999 RUNNER 50 DD 1998-2001 RUNNER SP 50 2011-2014 RUNNER SP 50 DD 1999-2001 RUNNER SP 50 PUREJET 2011 RX 125 ARIZONA 1986-1990 SMT 50 2005-2006 STALKER 50 DD 1997-2001 STALKER 50 DT 1997-1999 STALKER 50 DT BASE 1998-2006 STORM 50 2007-2008 TYPHOON 125 1995-1997 TYPHOON 50 1993-2007 ZULU 50 2001-2002 HERCULES K 125 V1 MILITARY 1978,1980-1981,1983,1985-1988 K 125 V2 MILITARY 1986,1988-1990 ULTRA 50 LC 1981-1983 HONDA ATC 250 R LC 1985-1986 CR 125 R 1980-2007 CR 250 R 1981-2007 CR 250 R ELSINORE 1978-1979 CR 60 R 1983-1984 CR 80 R 1980-1985 FL 250 ODYSSEY 1982-1984 FL 350 ODYSSEY 1985-1986 MBX 125 F 1984-1986 MBX 50 SD 1985-1988 MBX 80 SW 1982-1983 MBX 80 SW2 1982-1987 MBX 80 SWD 1982-1987 MCX 80 S 1983 MTX 125 RW 1983-1986 MTX 200 RW 1983-1988 MTX 80 R2 1987-1990 MTX 80 RS 1983-1986 NS 400 R 1985-1989 TRX 250 R 1986-1989 HUSQVARNA CR 430 1981-1983,1987-1988 CR 50 2011-2012 SM 125 S 1999-2009,2011-2012 SM 50 2011-2012 WRE 125 1999-2012 ITALJET DRAGSTER 125 1999-2003 DRAGSTER 180 1999-2003 JET-SET 50 2003 JOHN DEERE LIQUIFIRE 440 1981 SPORTFIRE 440 1981 TRAILFIRE 440 1981 KAWASAKI DRIFTER 440 1979-1981 GPZ 750 E TURBO 1984-1985 GPZ 750 R NINJA 1983-1985 GPZ 750 UNI TRAK 1983-1985 INTERCEPTOR 550 1982 INTRUDER 440 1978-1982 INVADER 340 1978-1980 INVADER 440 1978-1981 INVADER 440 LTD 1980 KDX 125 SR 1990-1994 KDX 175 1980-1982 KDX 200 1986-1994 KDX 250 1991-1995 KE 125 1983-1985 KE 175 1979 KX 125 B 1982-1983 KX 125 C 1984 KX 125 K 1994-1996,1998 KX 125 L 1999-2002 KX 125 M 2003 KX 250 1990 KX 400 1975-1976 KX 420 1980-1981 KX 500 A 1983-1984 KX 60 B 1991-1995 KX 80 17/14 1981-1986,1988-1991 KX 80 19/16 1988-1991 LTD 440 1981-1982 KTM DUKE 390 ABS 2013 EGS 250 1993-1995 EGS 300 1993-1995 EXC 125 2001 EXC 200 1998-2001 EXC 250 1993-1995 EXC 300 1993-1995 EXC 500 2012-2015 EXC 500 LC4 1989-1991 EXC 500 SIXDAYS 2012-2015 GXE 50 1988-1989,1991-1995 GXR 50 1988-1995 LC2 125 1996-2000 MX 250 1985-1992 MX 350 1988-1991 MX 500 1988-1992 SX 125 2002-2007 SX 200 2003-2004 SX 250 1993-1995 SX 300 1993-1995 LAVERDA SFC 1000 1985-1987 MAICO GM 250 E 1986 GM 250 STAR 1986 GS 125 1968-1975,1977-1981 GS 250 1959-1963 GS 250 E 1982-1983 GS 400 1972-1981 GS 490 1981-1982 GS 490 E 1982-1983 GS 501 1977-1979 GS 504 1980 M 250 MILITARY 1975-1979 MC 400 1972-1982 MC 440 1992-1994 MC 490 1980-1982 MC 500 1989-1994 MD 250 1974-1978 MD 250 WK 1978-1983 MALAGUTI DRAKON 50 NDK 2007 XSM 50 2007,2011 XTM 50 2003,2007,2011 MBK X-LIMIT 50 ENDURO 2005-2012 X-LIMIT 50 SUPERMOTARD 2005-2012 X-POWER 50 2003-2015 MOTO GUZZI 125 TT 1985-1988 PEUGEOT NK7 50 2011-2014 XP6 50 ENDURO 2008-2009,2012 XP6 50 SUPERMOTO 2008-2011 XPS 50 SM SUPERMOTO 2003-2005 XPS 50 T ENDURO 2003-2005 XR7 50 2009-2014 PIAGGIO DIESIS 50 2001-2004 FLY 50 2T 2009-2012 FREE 50 FL 1995,1997-1999,2002 FREE 50 FL DELIVERY 2000 FREE 50 W/ CATALYTIC CONVERTER 1993-1997 FREE 50 W/O CATALYTIC CONVERTER 1993,1995,1997-1998 HEXAGON 125 LX 2T RST 1999-2000 HEXAGON 125 LX 4T 1998-2000 HEXAGON 150 1994-1996,1998 HEXAGON 180 LXT RST 2T 1998,2000 LIBERTY 50 1995-2003 LIBERTY 50 2T 2004-2014 LIBERTY 50 2T SPORT 2007-2008 LIBERTY 50 4T 2001-2014 LIBERTY 50 4T DELIVERY 2004-2009 LIBERTY 50 PTT 2002-2004 LIBERTY 50 PTT 4T DELIVERY 2001-2003 LIBERTY 50 PTT 4T DELIVERY PIZZA HUT 2001-2003 LIBERTY 50 S 2007-2009 LIBERTY 50 SPORT 2002-2004 NRG DD 50 LC POWER 2005-2014 NRG DD 50 LC POWER PUREJET 2005-2010 NRG DT 50 AC POWER 2005-2014 NRG DT 50 LC 1995-1996 NRG MC2 DD 50 LC 1998-1999 NRG MC2 DD 50 LC EXTREME 1999-2002 NRG MC2 DT 50 AC EXTREME 1999-2004 NRG MC2 DT 50 LC 1996-1998 NRG MC3 DD 50 LC 2003-2004 NRG MC3 DD 50 LC PUREJET 2002-2004 NTT 50 LC 1995-1998 QUARTZ 50 1992,1994-1996 SFERA 50 NSL 1992-1995 SFERA 50 NSL CAT 1991-1995 SFERA 50 RST 1995,1997 SFERA 50 RST CAT 1995-1997 SKR 125 LX SKIPPER 1998-2000 SKR 125 SKIPPER 1994-1996 SKR 125 ST 4T SKIPPER LEADER 2000-2003 SKR 125 W/ CATALYTIC CONVERTER SKIPPER 1995-1997 SKR 150 LX SKIPPER 1998-2000 SKR 150 SKIPPER 1993-1998 SKR 150 ST 4T SKIPPER LEADER 2000-2004 STORM 50 1994-1996 TPH 125 1995-1999 TPH 125 TYPHOON 2011-2014 TPH 125 X-R 2000-2003 TPH 50 TYPHOON 1993-1999,2010-2015 TPH 50 W/CATALYTIC CONVERTER TYPHOON 1994-1999 TPH 50 X TYPHOON 1999-2000 TPH 50 XR TYPHOON 2000-2010 ZIP 50 1994,1996 ZIP 50 4T 2006-2011,2013 ZIP 50 AC 2T 2011-2013 ZIP 50 BASE 1993 ZIP 50 FAST RIDER 1993-1996 ZIP 50 LC SP 2T 2011-2013 ZIP 50 RST BASE 1996-1999 ZIP 50 RST FAST RIDER 1996-1998 ZIP 50 SP LC 1996-1998,2000 ZIP+ZIP 50 BIMODALE 1995-1998 PIAGGIO/ VESPA COSA 125 1988,1990-1991 COSA 125 FL 1991-1995 COSA 150 1988-1995 ET2 50 (25 MPH) 2000-2001,2003-2005 FLY 50 2T 2009-2012 HEXAGON 125 LX 2T RST 1999-2000 HEXAGON 125 LX 4T 1998-2000 HEXAGON 150 1994-1996,1998 HEXAGON 180 LXT RST 2T 1998,2000 LIBERTY 50 2T 2011-2014 LIBERTY 50 4T 2007-2014 LX 50 2011-2014 LX 50 TOURING 2011-2014 NRG DD 50 LC POWER 2011-2014 NRG DT 50 AC POWER 2011-2014 NRG MC2 DT 50 LC 1996-1998 PX 125 T5 1985-1990 PX 125 T5 CLASSIC 1992-1994 PX 125 T5 E-START 1985-1990 S 50 2008,2010-2013 S 50 4T 2013 S 50 4T COLLEGE 2010 S 50 4T SPORT 2013 S 50 COLLEGE 2010-2011 S 50 SPORT 2012-2013 SKR 125 LX SKIPPER 1998-2000 SKR 125 SKIPPER 1994-1996 SKR 125 ST 4T SKIPPER LEADER 2000-2003 SKR 125 W/ CATALYTIC CONVERTER SKIPPER 1995-1997 SKR 150 LX SKIPPER 1998-2000 SKR 150 SKIPPER 1993-1998 SKR 150 ST 4T SKIPPER LEADER 2000-2004 TPH 125 1995-1999 TPH 125 TYPHOON 2011-2014 TPH 125 X-R 2000-2003 TPH 50 TYPHOON 2010-2015 ZIP 50 1993 ZIP 50 4T 2011,2013 ZIP 50 AC 2T 2011-2013 ZIP 50 FAST RIDER 1993 ZIP 50 LC SP 2T 2011-2013 ZIP 50 SP LC 2000 ZIP+ZIP 50 BIMODALE 1995-1998 POLARIS EDGE 550 CLASSIC 2003-2005 INDY 400 1985-1991 INDY 400 CLASSIC 1988 INDY 400 SKS 1987-1988 INDY 440 1992 INDY 440 LONG TRAK 1985-1988 INDY 440 PRO X FAN 2002 INDY 440 SS 1985 INDY 550 2014-2019 INDY 550 ADVENTURE 2014-2019 INDY 550 LXT 2014-2019 INDY 550 VOYAGER 2014-2016 INDY 600 1985-1987 INDY 600 LE 1986 INDY 600 SE 1985 IQ 550 LXT 2011,2013 IQ SHIFT 550 2010-2013 IQ SHIFT 550 LXT 2012 RMK 500 2000-2002 RMK 500 136 2000-2002 RMK 600 1998-1999 RMK 700 1997-1998 RXL 650 1995-1997 RXL 650 LT 1995 RXL 650 TOURING 1995 SHIFT 550 2011-2013 SPRINT 340 1987-1990 SPRINT 340 ES 1987 STORM 750 1993 STORM 800 1995-1998 STORM 800 SE 1997 STORM RMK 800 1997 TRAIL 500 1995-1997 TRAIL 500 DELUXE 1995 TRAIL 500 TOURING 1996-1997 TRAIL 550 TOURING 2002-2005,2010 TRAIL RMK 550 1999-2005,2010 TRAIL RMK 550 136 2002,2004-2005 ULTRA 700 1997-1998 ULTRA 700 SP 1996-1997 ULTRA 700 SPX 1997 ULTRA 700 SPX SE 1997 ULTRA 700 TOURING 1998 WIDETRAK 500 GT 1995-1997 XC 400 1991 XC 440 1997 XC 440 SP 2000 XC 500 1999-2000 XC 500 SP SPECIAL 1999 XC 600 1997-1999 XC 600 SP SPECIAL 1999 XC 700 1998-1999 XC 700 SP SPECIAL 1999 XCF 440 1997-1999 XCF 440 SP 1999-2001 XCR 440 1996-1998 XCR 440 SP 1995-1996 XCR 600 1994-1998 XCR 600 SE 1997 XCR 600 SP 1996 XCR 700 1999 XCR 800 1999-2003 XLT 600 1993-1994 XLT 600 SP SPECIAL 1993-1994,1997-1999 RIEJU MRT 50 SM 2009-2017 MRT 50 SM PRO PRO SUPERMOTO 2010-2017 MRT 50 SM TROPHY 2016-2017 MRX 50 2003-2005,2008-2009 NKD 50 2004,2006-2009 RR 50 SE 2003 RR 50 SPORT 2005-2006 RS1 50 EVOLUTION 2003-2004 RS2 50 MATRIX 2003-2007,2009 RS3 50 2011-2019 RS3 50 NKD 2014-2017,2019 RS3 50 NKD NAKED 2018 RS3 50 PRO 2013-2017 SMX 50 2001-2006,2008-2009 TANGO 50 2009 ROYAL ENFIELD BULLET 500 ELECTRA 2003-2007 BULLET 500 G5 ELECTRA X 2007-2009 SACHS XTC 125 N NAKED 2000 XTC 125 RACING 2000-2001 ZX 125 ENDURO 2010-2011 ZZ 125 SUPERMOTO 2010-2011 SHERCO 0.5 50 2001-2004 0.5 50 KID 2005-2008 ENDURO 50 2004-2008 ENDURO 50 CHAMPION 2007-2008 ENDURO 50 SHARK 2005-2006 SE-R 50 2014-2016 SM 0.5 50 2009,2012-2013 SM 0.5 50 BLACK PANTHER 2009-2012 SM 0.5 50 FREEGUN 2013 SM-R 50 BLACK 2014-2016 SM-R 50 BLUE 2014-2016 SM-R 50 WHITE 2014-2016 SUPERMOTARD 50 2004-2008 SUPERMOTARD 50 BLACK PANTHER 2008 SUPERMOTARD 50 CHAMPION 2005-2008 SUPERMOTARD 50 IPONE 2005-2007 SUPERMOTARD 50 SHARK 2005-2006 SUPERMOTARD 50 SHERCO CUP 2007-2008 SKI-DOO (BRP) ALPINE 2 500 1993-1995 BLIZZARD 9500 1982 BLIZZARD 9500 PLUS 1980-1981 CITATION 250 LS 1986-1987 CITATION 250 LSE 1986-1988 ESCAPADE 500 1987-1989 FORMULA 3 600 1999 FORMULA 3 600 LT 1998 FORMULA 3 700 1998 FORMULA 380 S 1995-1996 FORMULA 470 SP 1986 FORMULA 500 1997-1998 FORMULA 500 DE LUXE 1997-1998 FORMULA DELUXE 380 1999-2000 FORMULA DELUXE 380 F FAN 2001 FORMULA DELUXE 380 FAN 2001 FORMULA DELUXE 600 2000-2001 FORMULA DELUXE 600 GSE 2001 FORMULA DELUXE 670 1999 FORMULA DELUXE 700 2000 FORMULA DELUXE 700 GS 2001 FORMULA DELUXE 700 GSE 2001 FORMULA MX 470 1986-1987,1989-1990,1992-1993 FORMULA MX 470 2 1993 FORMULA MX 470 LT 1987-1990 FORMULA MX 470 LT 2 1990 FORMULA MX 470 XTC 1991 FORMULA MX 470 XTC E 1991 FORMULA MX 470 XTC R 1992-1993 FORMULA MX-E 470 1991 FORMULA MX-Z 470 1993 FORMULA MXE 470 1991 FORMULA PLUS 580 1993 FORMULA PLUS 580 2 1993 FORMULA PLUS 580 EFI 1993 FORMULA PLUS 580 XTC 1993 FORMULA S 380 1997,1999-2000 FORMULA SL 500 1997-1998 FORMULA SS 670 1995-1996 FORMULA ST 470 1994 FORMULA Z 600 2000 FORMULA Z 670 1998-1999 FORMULA Z 700 2000 GRAND TOURING 600 CARB SPORT 2012-2014 GT 500 1996-1999 GT 583 1994-1999 GT 583 XTC 1994 GT 670 SE 1994-1996 LEGEND 380 F FAN 2002-2004 LEGEND 380 FAN 2002-2004 LEGEND 500 F FAN 2002 LEGEND 500 FAN 2002 LEGEND 500 GT SPORT 2004 LEGEND 500 SPORT 2002-2004 LEGEND 550 F FAN 2003-2004 LEGEND 550 FAN 2003-2004 LEGEND 550 GT FAN 2004 MACH 1 670 1994-1995 MACH Z 800 1995,2000 MACH Z 800 SPORT 2001-2002 MACH Z 800 TECH PLUS 2001-2002 MX 470 1994-1995 MX-Z 380 F FAN 2001-2003,2005-2006 MX-Z 440 1997-2000 MX-Z 440 F FAN 2001 MX-Z 440 FAN 2001 MX-Z 440 LC 1996 MX-Z 440 X 2002-2003 MX-Z 440 X LC 1998-2000 MX-Z 470 X 1994 MX-Z 500 TRAIL 2001-2003,2005-2009 MX-Z 550 F FAN 2003,2005-2008 MX-Z 583 1996-1998 MX-Z 600 1999-2001 MX-Z 600 ACE SPORT 2012-2015 MX-Z 600 ACE TNT 2012 MX-Z 600 ADRENALINE 2001 MX-Z 600 CARB TNT 2012 MX-Z 600 E-TEC TNT 2012 MX-Z 600 TRAIL 2001 MX-Z 600 X 2001 MX-Z 670 1996-1999 MX-Z 700 1999-2001 MX-Z 700 ADRENALINE 2001 MX-Z 700 TRAIL 2001 MX-Z 700 X 2001 MX-Z 800 2001 MX-Z 800 ADRENALINE 2001 MX-Z 800 R E-TEC TNT 2011 MX-Z 800 X 2001 RENEGADE 600 CARB SPORT 2016,2018-2022 RENEGADE 600 E-TEC ADRENALINE 2015 RENEGADE 600 E-TEC BACKCOUNTRY 2015 RENEGADE 600 X E-TEC 2015 RENEGADE 800 R PTEK ADRENALINE 2010-2011 RENEGADE 800 R PTEK BACKCOUNTRY 2010-2011 RENEGADE 800 R PTEK SP 2011 RENEGADE 800 R X PTEK 2010 RENEGADE 800 R X PTEK BACKCOUNTRY 2010 SAFARI 440 LX 1991 SAFARI 440 LXE 1990-1991 SAFARI 470 GLX 1990-1991 SAFARI 470 LC 1990 SAFARI 470 LCE 1991 SAFARI 470 LCE 2 1992 SAFARI 500 CHEYENNE 1989 SAFARI 500 RALLY 1993 SAFARI 500 RALLY E 1994 SKANDIC 380 1995-2000 SKANDIC 440 LT 2001-2002 SKANDIC 500 1995,1997-2000 SKANDIC 500 LC WT 1997-1999 SKANDIC 500 SPORT 2003 SKANDIC 500 SWT 1997-2000,2002-2003 SKANDIC 500 WT 1995-2002 SKANDIC 600 LC WT 2001 STRATOS 500 1987-1988 STRATOS 500 E 1988 SUMMIT 470 2 1994 SUMMIT 500 1996-1999 SUMMIT 500 F FAN 2001-2002 SUMMIT 500 FAN 2001-2002 SUMMIT 550 F FAN 2003-2004 SUMMIT 550 FAN 2003-2004 SUMMIT 583 1994-1998 SUMMIT 583 2 1994 SUMMIT 600 1999-2001 SUMMIT 600 CARB SPORT 2012-2020 SUMMIT 670 1995-1998 SUMMIT 670 X 1999 SUMMIT 700 HIGHMARK 2001 SUMMIT 700 HIGHMARK SE 2000 SUMMIT 700 HIGHMARK X 2001 SUMMIT 700 X 2001 SUMMIT 800 HIGHMARK X 2001 SUMMIT 800 R E-TEC EVEREST 2011 SUMMIT 800 R PTEK EVEREST 2011 SUMMIT 800 R PTEK SPORT 2013 SUMMIT 800 RENEGADE 2001 SUMMIT 800 X 2001 TOURING 380 E 1995-1997,2000 TOURING 380 E LT 1997 TOURING 440 LE 1995-1998,2000 TOURING 500 LC 2000 TOURING 500 SLE 1995,1997-2000 SUZUKI GS 850 G 1984-1986 GT 250 E X7E 1979-1981 GT 250 X7 1978-1981 PE 250 1979 RG 125 F GAMMA 1992-1996 RG 125 GAMMA 1985-1991 RG 125 U WOLF 1992-1995 RG 250 C GAMMA 1986-1988 RG 250 FC GAMMA 1987-1988 RG 250 W GAMMA 1983-1985 RG 500 GAMMA 1986-1989 RGV 250 GAMMA 1988-1990 RM 125 1975-1980,1993-1995 RM 250 1976-1980 RM 80 H 1983-1985 RM 80 X 1983-1999 TS 125 R 1989-1997 TS 125 X DISC BRAKE 1988 TS 125 X DRUM BRAKE 1984-1988 TS 200 R 1989-1996 TS 250 X 1985-1989 TS 400 APACHE 1972-1977 TM RACING CROSS 250 1994-2002 CROSS 300 1997-1999,2002 CROSS 80 JUNIOR LARGE WHEEL 1994-2002 CROSS 80 JUNIOR SMALL WHEEL 1994-1995,1997-2002 EN 125 2004-2014 ENDURO 250 2T 1994-1999,2001-2003 ENDURO 300 2T 1997,1999-2002 ENDURO 80 2T 1994-2000 ENDURO 80 2T LARGE WHEEL 2001,2003 ENDURO 80 2T SMALL WHEEL 2001-2003 VESPA COSA 125 1988,1990-1991 COSA 125 FL 1991-1995 COSA 150 1988-1995 ET2 50 1998-2005 ET2 50 I INJECTION 1998-1999 LX 50 2005-2014 LX 50 TOURING 2010-2014 LXV 50 2006-2009 LXV 50 4T 2009 PX 125 T5 1985-1990 PX 125 T5 CLASSIC 1992-1994 PX 125 T5 E-START 1985-1990 S 50 2007-2014 S 50 4T 2008-2013 S 50 4T COLLEGE 2010 S 50 4T SPORT 2012-2013 S 50 COLLEGE 2010-2011 S 50 SPORT 2012-2014 YAMAHA CS 340 E OVATION LE 1989-1990,1992-1999 DT 125 E 1976-1979,1989-1990 DT 125 LC 1986-1987 DT 125 R 1991-2001 DT 125 RE 1997-1998,2004-2006 DT 175 1974-1979,1981 DT 175 MX 1978-1983 DT 200 LC 1993 DT 200 R 1984-1986 DT 200 WR 1993,1995 DT 360 1974 DT 400 1975-1978 DT 400 MX 1978-1979 DT 50 R 2003-2012 DT 50 RSM 2003-2005 DT 50 X 2006-2007,2010-2012 DT 80 LC II 1985-1989 ENTICER 2 410 1994-1995 ENTICER 2 410 LT 1992 EXCITER 2 570 1992-1993 EXCITER 2 570 LE 1991-1993 EXCITER 2 570 ST 1993 EXCITER 2 570 SX 1993 EXCITER 340 1978 EXCITER 440 1978-1981 EXCITER 570 1987-1991 EXCITER 570 DELUXE 1988-1990 IT 125 1980-1984 IT 175 1983 IT 200 1984-1986 IT 200 L 1984 IT 250 1977-1985 MM 600 MOUNTAIN MAX 1997,2000-2002 MM 600 P MOUNTAIN MAX 1999 MM 700 MOUNTAIN MAX 1997,2000-2004 MM 700 P MOUNTAIN MAX 1998 MM 800 MOUNTAIN MAX 1997 MX 125 1974-1976 PHAZER 480 1984-1989 PHAZER 480 DELUXE 1986-1988,1990 PHAZER 480 E 1985 PHAZER 480 SE 1984 PHAZER 480 SS 1997-1998 PHAZER 480 SS E 1997-1998 PHAZER 480 ST MOUNTAIN LITE 1997,1999 PHAZER 500 1999-2001,2007-2009 PHAZER 500 DELUXE 2001 PHAZER 500 FX 2007 PHAZER 500 GT 2007-2013 PHAZER 500 M-TX 2008-2013 PHAZER 500 MOUNTAIN LITE 2000-2001,2007 PHAZER 500 MTX 144 2008-2013 PHAZER 500 R-TX 2008-2013 PHAZER 500 RTX 121 2008-2013 RD 125 LC 1982-1984 RD 350 LC R YPVS 1992,1994-1995 RD 350 LC YPVS 1986-1989,1991 SR 440 1978 SRV 540 1980-1991 SRX 440 1978-1981 SS 440 1980-1985 SX 500 R 2000-2001 SX 600 R 2000-2003 SX 700 R 2000-2001 SX VENOM 600 2004-2006 SX VENOM 600 ER 2004-2006 SX VIPER 700 2002-2003 SX VIPER 700 ER 2002-2004 SX VIPER 700 MOUNTAIN 2003-2006 SX VIPER 700 S 2004 TDR 125 1993-1996 TDR 250 1988-1990 TZR 125 1987-1992 TZR 125 R 1987-1989,1991-1992 TZR 125 SP 1992 TZR 250 1986-1989 TZR 250 R 1989 TZR 50 2003-2011 VENTURE 480 GT 1993 VENTURE 480 TR 1996 VENTURE 480 TRE 1998 VENTURE 480 XL 1991-1996 VENTURE 600 1997-2003,2006 VENTURE 700 1999-2003 VK 540 3 2004-2005 VK 540 E 1988-1990,2000 VK 540 E 2 1994-1997 VK 540 E 3 1999,2001-2003 VMAX 540 1983-1987 VMAX 600 1994-1996,1999 VMAX 600 DELUXE 2001 VMAX 600 DX 1994-1996 VMAX 600 ER 2002 VMAX 600 ER DELUXE 1999 VMAX 600 LE 1994-1996 VMAX 600 MOUNTAIN MAX 1996 VMAX 600 ST 1994-1995 VMAX 600 SX 1997-1999 VMAX 600 SXS 1998 VMAX 600 XT 1996-1998 VMAX 600 XTC 1997-1998 VMAX 600 XTC DELUXE 1998 VMAX 600 XTC ES 1997 VMAX 600 XTC ES R 1997 VMAX 700 1999-2000 VMAX 700 DELUXE 2000 VMAX 700 ER 2002 VMAX 700 ER DELUXE 1999 VMAX 700 SX 1998-1999 VMAX 700 SXS 1998 VMAX 700 XTC 1998 VMAX 700 XTC DELUXE 1998 VMAX 800 1995-1997 VMAX 800 ST 1995 VX 700 WAVE RUNNER 2006-2011 WR 200 R 1993 YS 125 CBS 2018-2019 YZ 125 1974-2018 YZ 125 X 1976 YZ 250 1982-1983 YZ 490 1982-1990 YZ 50 G 1980 YZ 80 1984-1986
