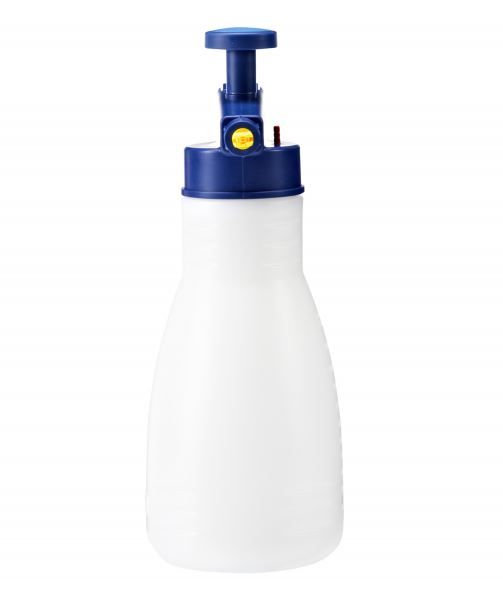

SPRAYFIX ALKALI JET 1 5 L

Tuff Jug

• SPRAYFIxx-alkali-1,5 l
• Flat jet nozzle
• Specification
• HDPE container with scale in ml
• According to application, spray pattern, slewability and foam, the following nozzles are available: adjusting and swivelling nozzle, stainless steel + adjusting nozzle with plastic adjusting nut + swivelling foam nozzle, refer to SPRAYFIxx Alkali (#38500348) nozzle kit
• Seals Viton® FKM
• Manual pressure build-up with combined overpressure and venting valve
• With EAN bar code
• Special notes
• Suited for diluted alkalis (pH value 7-14)
• Colour coding at container and pump head, blue
• Different nozzles allow for application-specific use
• UV-resistant
• Technical data
• Container volume max (ml): 1500
• Filling volume max (ml): 1200
• Colour of container: white, transparent
• Temperature range (°C): +5 / +30
• Operating pressure max (bar): 2,5
• Height (mm): 325
• Base LxB (mm): 230 x 120
• Weight (kg): 0,45
• Nozzle: Flat spray nozzle, 110° ABS
• Spray pattern: Flat spray angle 110° at 2,5 bar
• Spraying quantity (ml/min): 450
• Spraying distance (m): 0,8
• Colour code: blue
• Material
• Container: HDPE (high density polyethylene)
• Seals: Viton®, FKM
• Pump head: Special plastic
• Valve rod + springs: stainless steel / stainless steel
• Nozzle: PP (polypropylene)
