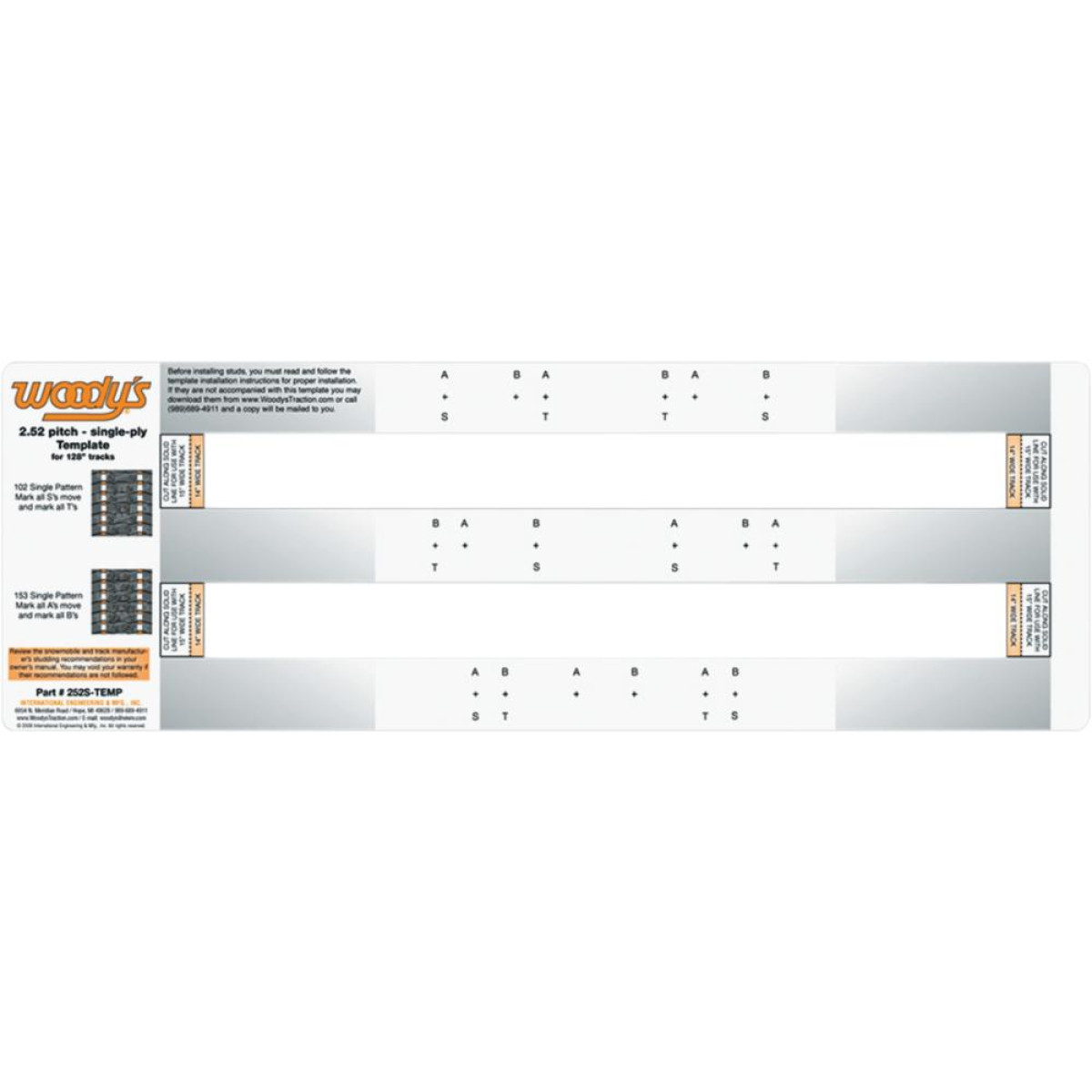

TEMPLATE ARC 2.52P

Studding Template

• Stud patterns on Woody's® templates are CAD-designed to maintain track balance
• Follow the instructions and you will have the highest level of precision stud placement
• Printed on laminated heavy card stock

Arctic Cat template for 2.52 pitch single-ply track. Length 128". Stud pattern of 102 and 153.

APPLICATION	Track Stud
UNITS	Each
PRODUCT NAME	Studding Template
FOR TRACK LENGTH	325 cm (128")
FOR TRACK WIDTH	38 cm (15")
FOR TRACK PITCH	64 mm (2,52")
FOR TRACK PLY RATING	1 Ply
