IGNITION STAGE RPM LIMTR

Be the first to review this product

In stock

SKU

21010209

Special Price €533.00 Regular Price €609.00

Dispatching between 15.03.2026 and 16.03.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Monthly payment from 18.20€, when choosing ESTO instalment as the payment method.

Quick Overview

Internal Ignition System

Feature two advance curve famili...

Details

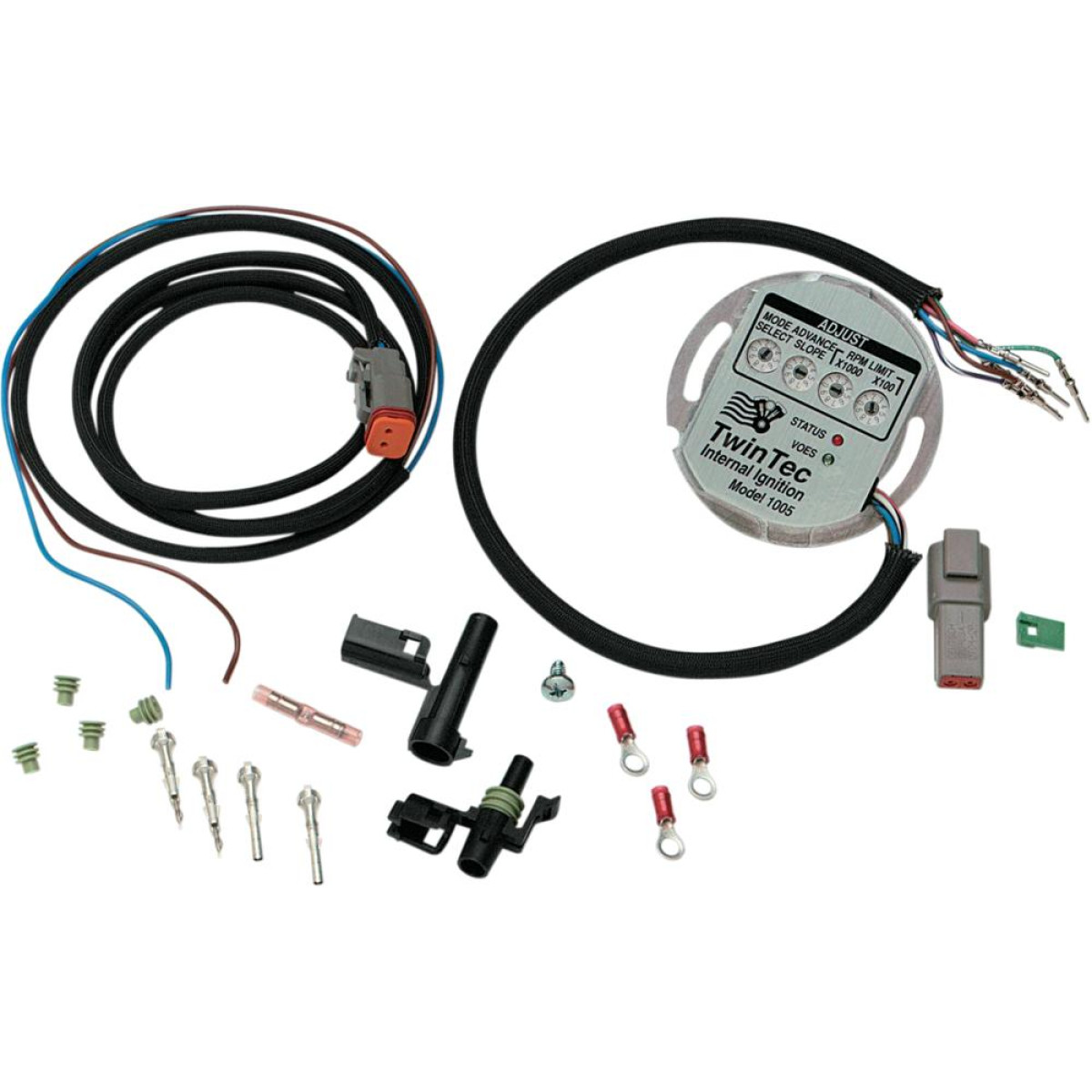

Internal Ignition System

Feature two advance curve families that are adjustable to accommodate stock and modified engines
Selectable multi-spark mode for quick starting and smooth cruising
Four rotary switches for timing adjustments, single/dual ignition mode and rpm limit (100-rpm steps)
Coil outputs protected against short circuits
Require coils with a minimum of 3 ohms resistance and low resistance spiral-core-type plug wires
Require timing rotor OEM #32402-83 or PART #2101-0234
Use the tachometer wire for the PC link and comes with a connector
Optional USB interface and software available for programming custom curves (programs available on web site www.daytona-twintec.com)
Made in the U.S.A.
Standard models are not legal for sale or use on pollution-controlled vehicles.
California A.R.B. E.O. No. D-641-1.

COLOR/FINISH	Black\| Gray
MODEL	Standard
FEATURES	Programmable
TYPE	Ignition\| Rev Limiter
UNITS	Each
PRODUCT NAME	Ignition Module
ELECTRICAL RESISTANCE	3.0 Ohms
BASE COLOR	Black\| Gray

More Information

More Information
Weight	0.360000
Height	50
Width	150
Brand	DAYTONA TWIN TEC LLC
Lenght	196
Supplier reference	1005-T
Outlet	No
Fitment chart (old)	HARLEY DAVIDSON FLHR 1340 ROAD KING 1994-1998 FLHRCI 1340 EFI ROAD KING CLASSIC 1998 FLHRI 1340 EFI ROAD KING 1996-1997 FLHRI 1450 EFI ROAD KING 1999 FLHS 1340 ELECTRA GLIDE SPORT 1987-1994 FLHT 1340 ELECTRA GLIDE 1986-1988,1995-1998 FLHT 1340 ELECTRA GLIDE STANDARD 1995-1998 FLHTC 1340 ELECTRA GLIDE CLASSIC 1984-1998 FLHTCU 1340 ELECTRA GLIDE ULTRA CLASSIC 1989-1997 FLST 1340 HERITAGE SOFTAIL 1986-1990 FLSTC 1340 HERITAGE SOFTAIL CLASSIC 1989-1999 FLSTF 1340 FAT BOY 1990-1999 FLSTN 1340 HERITAGE SOFTAIL 1996 FLSTN 1340 HERITAGE SOFTAIL NOSTALGIA 1993 FLSTN 1340 HERITAGE SOFTAIL SPECIAL 1994-1995 FLSTN 1340 HERITAGE SOFTAIL SPECIAL/NOSTALGIA 1993-1996 FLTC 1340 TOUR GLIDE CLASSIC 1983-1991 FLTCU 1340 TOUR GLIDE ULTRA CLASSIC 1989-1996 FLTR 1450 ROAD GLIDE 1999 FLTRI 1450 EFI ROAD GLIDE 1999 FXD 1340 DYNA SUPER GLIDE 1995-1998 FXDB 1340 DYNA GLIDE DAYTONA 1992 FXDB 1340 DYNA GLIDE STURGIS 1991 FXDC 1340 DYNA GLIDE CUSTOM 1992 FXDG 1340 1984 FXDL 1340 DYNA GLIDE LOW RIDER 1993-1998 FXDL 1340 DYNA LOW RIDER 1993-1998 FXDS-CON 1340 DYNA GLIDE LOW RIDER CONVERTIBLE 1994-1999 FXDS-CON 1340 DYNA SUPER GLIDE CONVERTIBLE 1994-1999 FXDWG 1340 DYNA WIDE GLIDE 1993-1998 FXEF 1340 FAT BOB 1985-1986 FXLR 1340 LOW RIDER CUSTOM 1987-1994 FXR 1340 SUPER GLIDE 1986-1994 FXRC 1340 LOW GLIDE CUSTOM 1985-1987 FXRD 1340 DISC GLIDE 1986 FXRDG 1340 DISC GLIDE 1984-1985 FXRS 1340 LOW GLIDE 1985 FXRS 1340 LOW RIDER 1986-1992 FXRS CON. 1340 LOW RIDER CONVERTIBLE 1989-1993 FXRS-SP 1340 LOW RIDER SPORT EDITION (FXRSL) 1986-1993 FXRT 1340 SPORT GLIDE 1984-1992 FXSB 1340 LOW RIDER 1984-1985 FXST 1340 SOFTAIL 1985-1990,1999 FXSTC 1340 SOFTAIL CUSTOM 1986-1998 FXSTS 1340 SOFTAIL SPRINGER 1988-1999 FXSTSB 1340 BAD BOY 1995-1997 FXWG 1340 WIDE GLIDE 1984-1986 XLH 1100 SPORTSTER 1986-1987 XLH 1200 SPORTSTER 1988-1997 XLH 883 SPORTSTER 1986-1987,1990-1997
