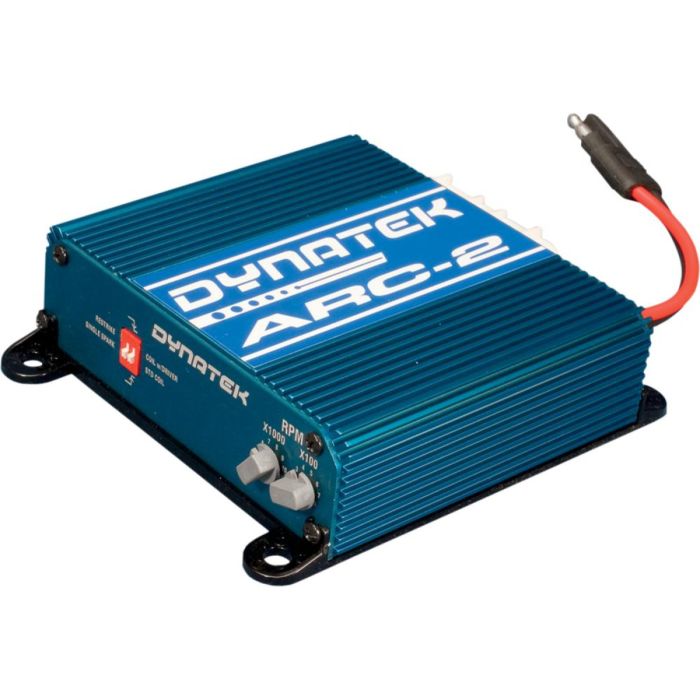

IGNITION DYNA ARC-2

ARC-2 CDI Box

• Smallest and lightest CDI on the market
• Simplified plug-in harnesses for easy installation without need for tach adapters
• Over 189mJ delivered to the coil per spark, the highest of any on the market
• Over 500V to the coil primary
• Over 50kV to the coil secondary (assuming a 100:1 coil)
• Intelligent spark profiling (ISP) allows for less delay between successive sparks
• Spark restrike up to 4500 rpm
• Provides high level of output from as low as 8V from the battery
• Works with any 2 coil OEM ignition, with or without factory ignitor(some systems may require replacement coils)
• Built-in launch limiter, works from 2000-11900 rpm
• Built-in fixed timing retard function
• Tach output
• Measures 4" x 4.6" x 1.4"
• Requires specific or universal installation kit (sold separately)
