IGNITION 04-06 T.C. CARB.

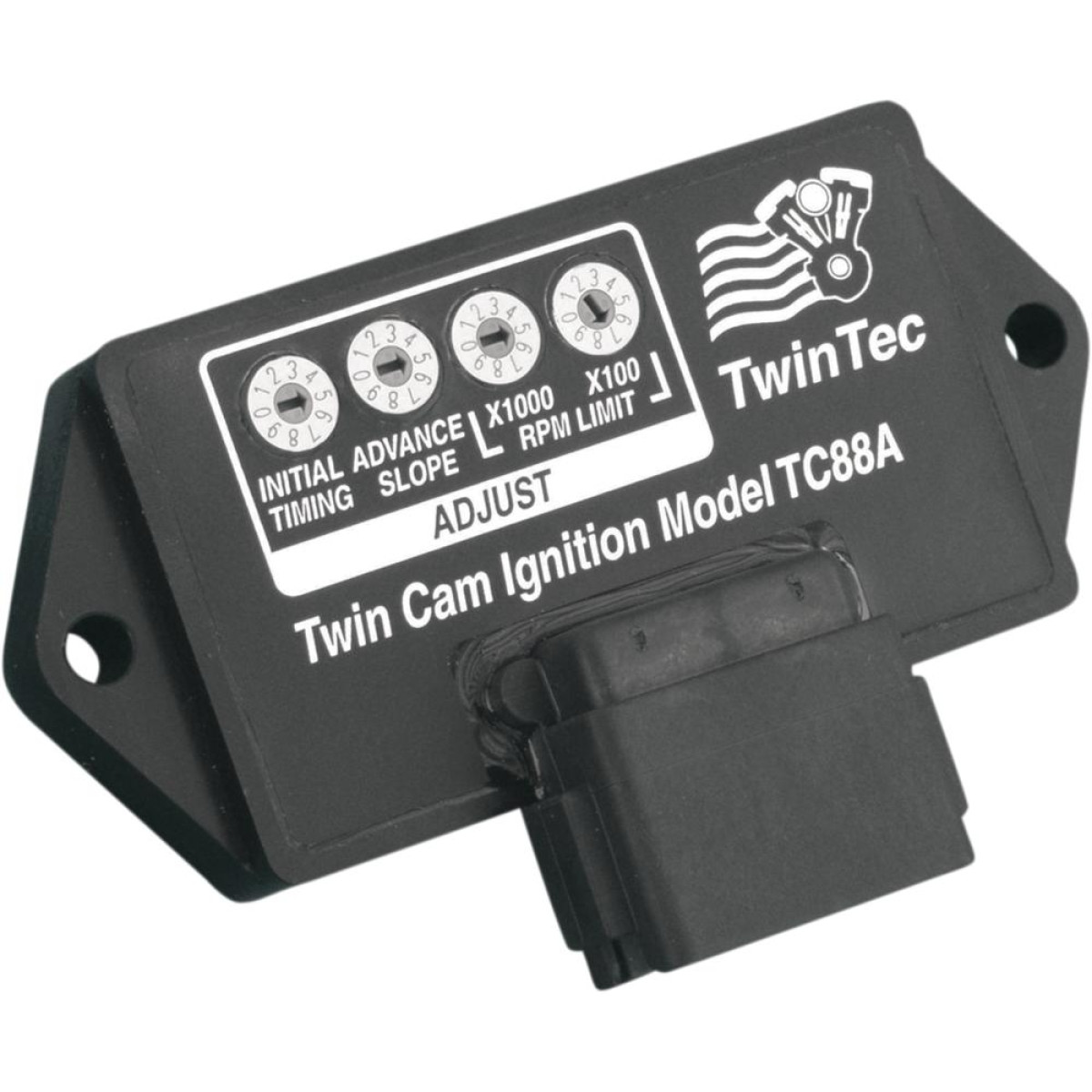

Plug-In Ignition Module

• Feature two advance curve families that are adjustable to accommodate stock and modified engines
• Selectable multi-spark mode for quick starting and smooth cruising
• Five rotary switches for mode select, timing adjustments, advance slope and rpm limit (in 100 rpm steps)
• Coil outputs protected against short circuits
• Require OEM coils with less than 1 ohm primary resistance and low-resistance spiral-core or carbon-core suppression-type plug wires
• 12V power adapters are used to power up the modules when removed from the bike (sold separately)
• Optional USB interface PART #2101-0075 and software required for programming (programs available on web site www.daytona-twintec.com/index.html) custom curves
• Easy-to-follow instructions included
• Made in the U.S.A.
• Will not work on fuel-injected models.
• Standard not legal for sale or use on pollution-controlled vehicles.
• California A.R.B. E.O. No. D-641-1.
