MOTO M. FRT FLAME L HONDA

In stock
SKU
17101242
MOTO-MASTER
Special Price €96.00 Regular Price €118.00
Dispatching between 16.03.2026 and 18.03.2026
Monthly payment from 5.91€, when choosing ESTO instalment as the payment method.
Quick Overview

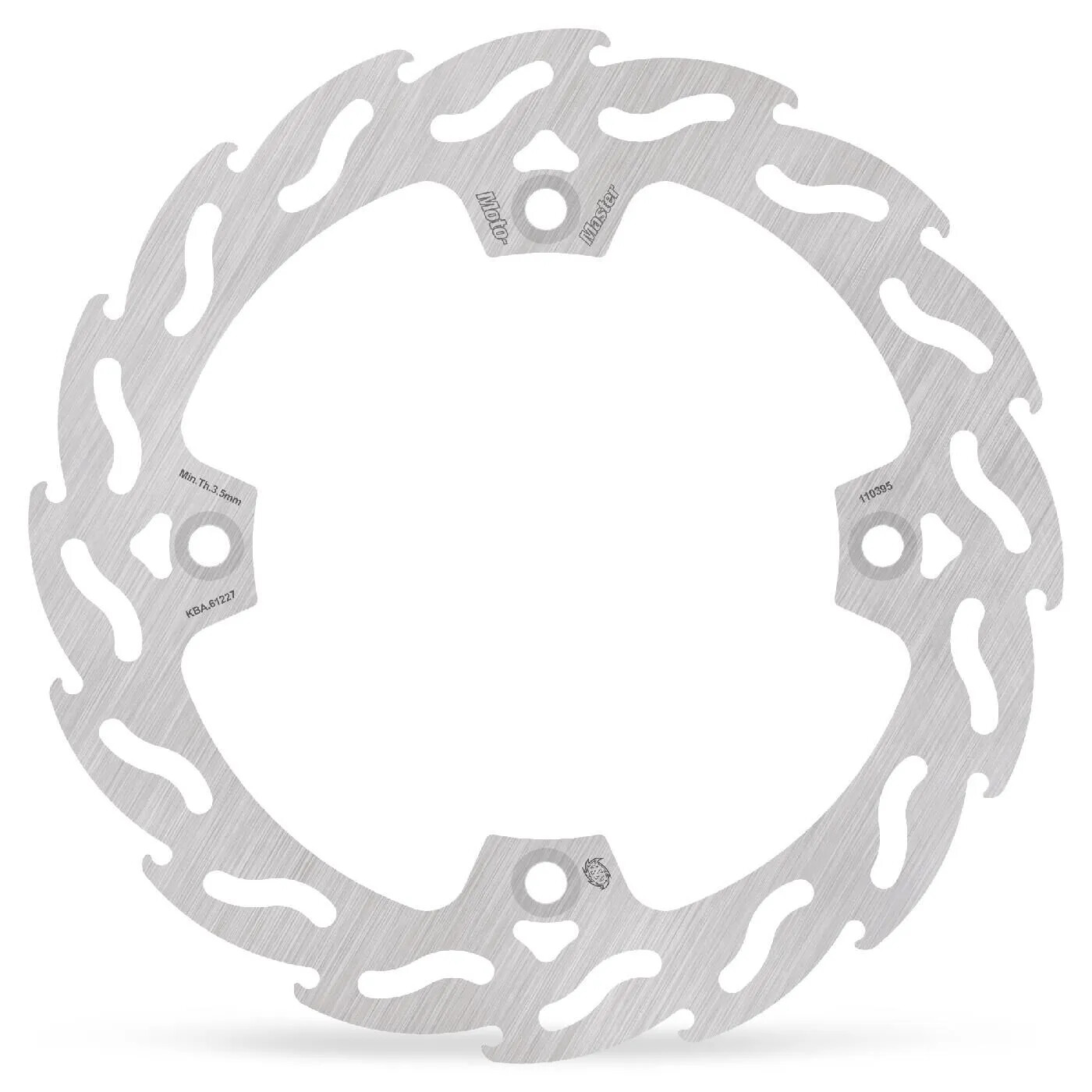

Flame Series Fixed Rotor

  • The unique Flame design offers o...

Flame Series Fixed Rotor

  • Flame shaped venting slots and outer perimeter ensure an equal amount of contact surface between the brake pad and disc throughout the whole rotation of the disc.
  • Smooth and more predictable braking action which allows you to brake harder.



BOLT PATTERN4 Hole
COLOR/FINISHSilver| Stainless Steel
INSIDE DIAMETER144,0 mm
MATERIALStainless Steel
MODELFlame
OUTSIDE DIAMETER256 mm
SHAPEContour
THICKNESS4,0 mm
STYLESolid-Mount
TYPEOne Piece (Fixed)
UNITSEach
PRODUCT NAMEBrake Rotor
BOLT HOLE CIRCLE166,0 mm
BRAKING SURFACESlotted
More Information
Weight0.660000
Barcode EAN138790497001414
Height9
Width276
BrandMOTO-MASTER
Lenght271
Supplier reference110395
OutletNo
Fitment chart (old)HONDA
NX 650 DOMINATOR 1988-2000
XL 600 V TRANSALP 1997-2000
XL 650 V TRANSALP 2000-2007
XL 700 V ABS TRANSALP 2008-2012
XL 700 V TRANSALP 2008-2012
XR 650 L 1993-2004
