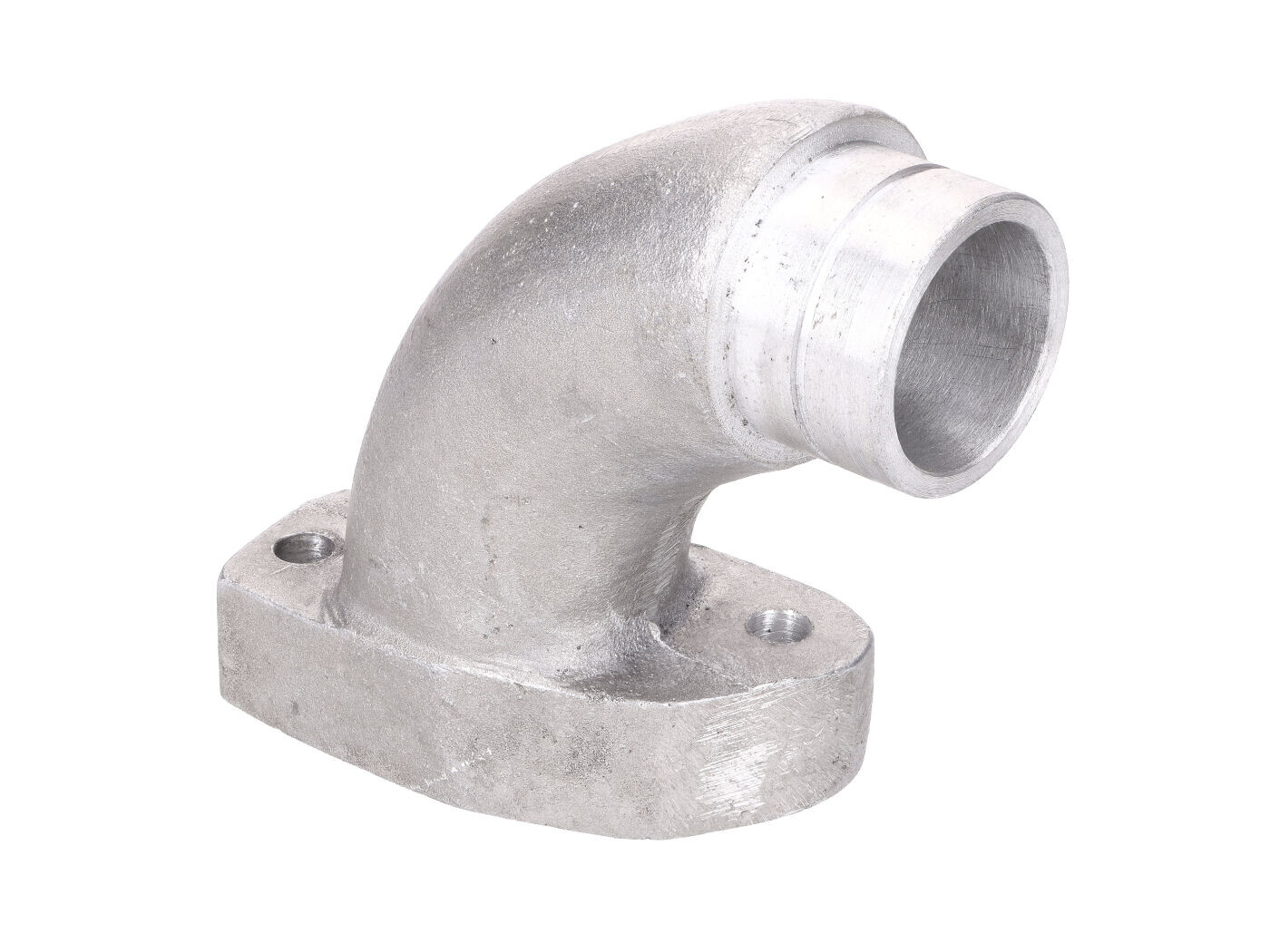

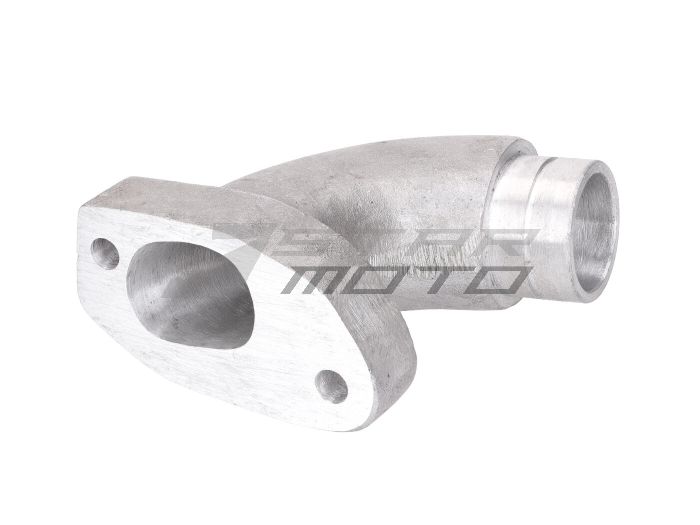

intake manifold reed valve SCOOT RS for Vespa PX125, PX150 LML reed valve casing

Intake manifold SCOOT RS suitable for Vespa PX 125-150 LML reed valve housing.

The intake manifold allows the installation of a larger carburetor on the reed valve controlled LML engines. It has a passage of just under 26.6mm, suitable for 24-30mm carburetors from all manufacturers such as Dellorto, Mikuni, Keihin and Naraku. The connection width at the flange for the carburetor is 34mm. The connecting piece is bolted to the original bolt-on points of the previously mounted carburetor pan. The scope of delivery includes only the pure nozzle, a corresponding seal or connecting rubber must be ordered separately.
