injection module Malossi Force Master 3 for Vespa GTS/GTS Super/GTV 300cc HPE (´21-) Euro5 4T LC i.e.

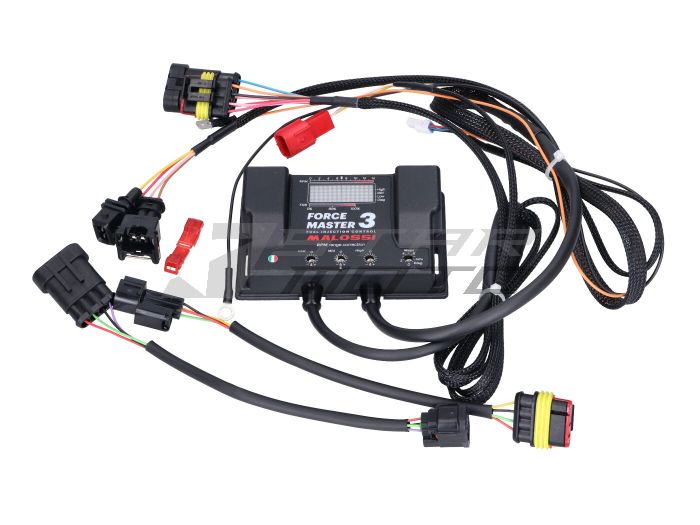

Malossi CDI injection module Force Master 3 suitable for Vespa GTS / GTS Super / GTV Sei Giorni HPE scooters with water-cooled 300cc 4-stroke Euro5 engine with direct injection.

With the Force Master 3 Malossi brings its injection module to the latest state of the art. Unlike the Force Master 2, there are no step-by-step adjustments with fixed preset ignition and injection values. The Force Master 3 adapts via the lambda sensor to the current conditions such as sea level and residual oxygen steplessly and thus always reaches the optimum ignition angle and injection amount depending on the situation.

5 pre-installed mappings can be selected and can also be individually tuned with +/-14%. 3 more freely programmable mappings can be saved. All settings are made via the display.

Technical overview:

w/ display

CAN bus prepared

lambda autotune

injection amount and injection time adjustment

mapping adjustment by +/-14% in LOW/ MID/ HIGH

speed limit +1,000RPM

speed limit shutdown

5 pre-installed maps (3 more possible)

programmable accelerator pump

readout with K-Line KWP2000 possible

The installation is quite simple, since the injection module has the typical vehicle connectors. It is therefore simply plugged between already existing connectors of the wiring harness.

More information we have deposited as a download.
