Hydraulic steering system MULTIFLEX -115HP, 16 cm3, 50 bar, 3/4" shaft, 92,5 cm3, 184 mm,

Multiflex OH-115U
High-quality hydraulic steering system for outboards up to 115 hp.
Steering pump: Volume 16 cm3 | Max pressure 50 bar | non-return valve | 3/4\ shaft
Cylinder: Volume 92,5 cm3 | Stroke length: 184 mm | Mounting: 11\
Steering wheel rotation: 5,3
Recommended steering wheel Ø: 280 mm
Min. width engine bay: 550 mm (centered)

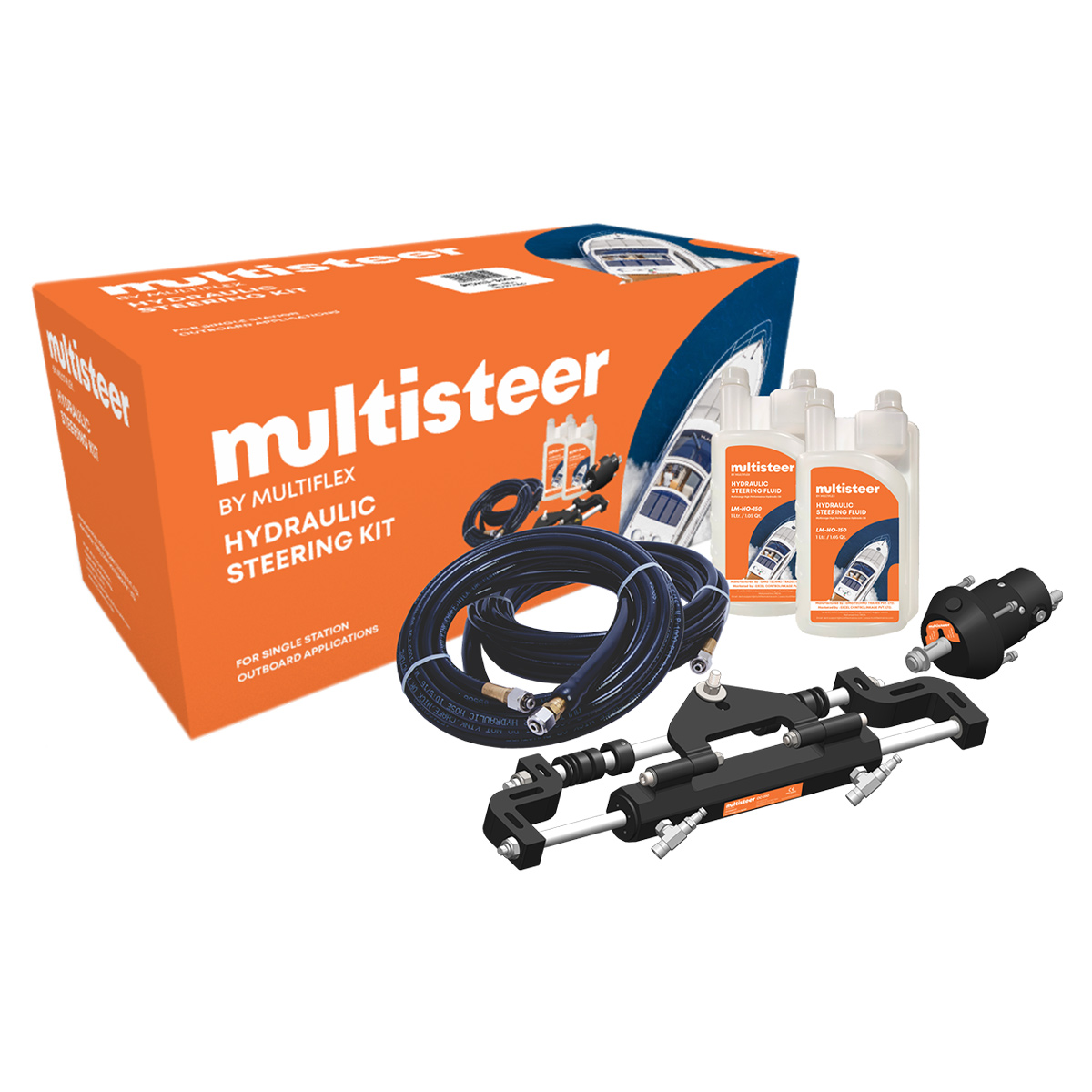

Includes: HP-16 Flush Mount Hydraulic Helm Pump
OC-115U Single Balanced Front Mount Cylinder
HO-150 Hydraulic Steering Fluid 2 L
CT-5.0 Hydraulic Hose 2 x 5 m with factory fittings
Compatible Outboard Engines
YAMAHA Four Stroke 20-115 HP
YAMAHA Two Stroke 25-90 HP
MERCURY Four Stroke 20-115 HP
MERCURY Two Stroke 25-60 HP
SUZUKI Four Stroke 30-115 HP
SUZUKI Two Stroke 30-40 HP
HONDA Four Stroke 20-115 HP
EVINRUDE Four Stroke 30-115 HP
TOHATSU Four Stroke 15-115 HP
