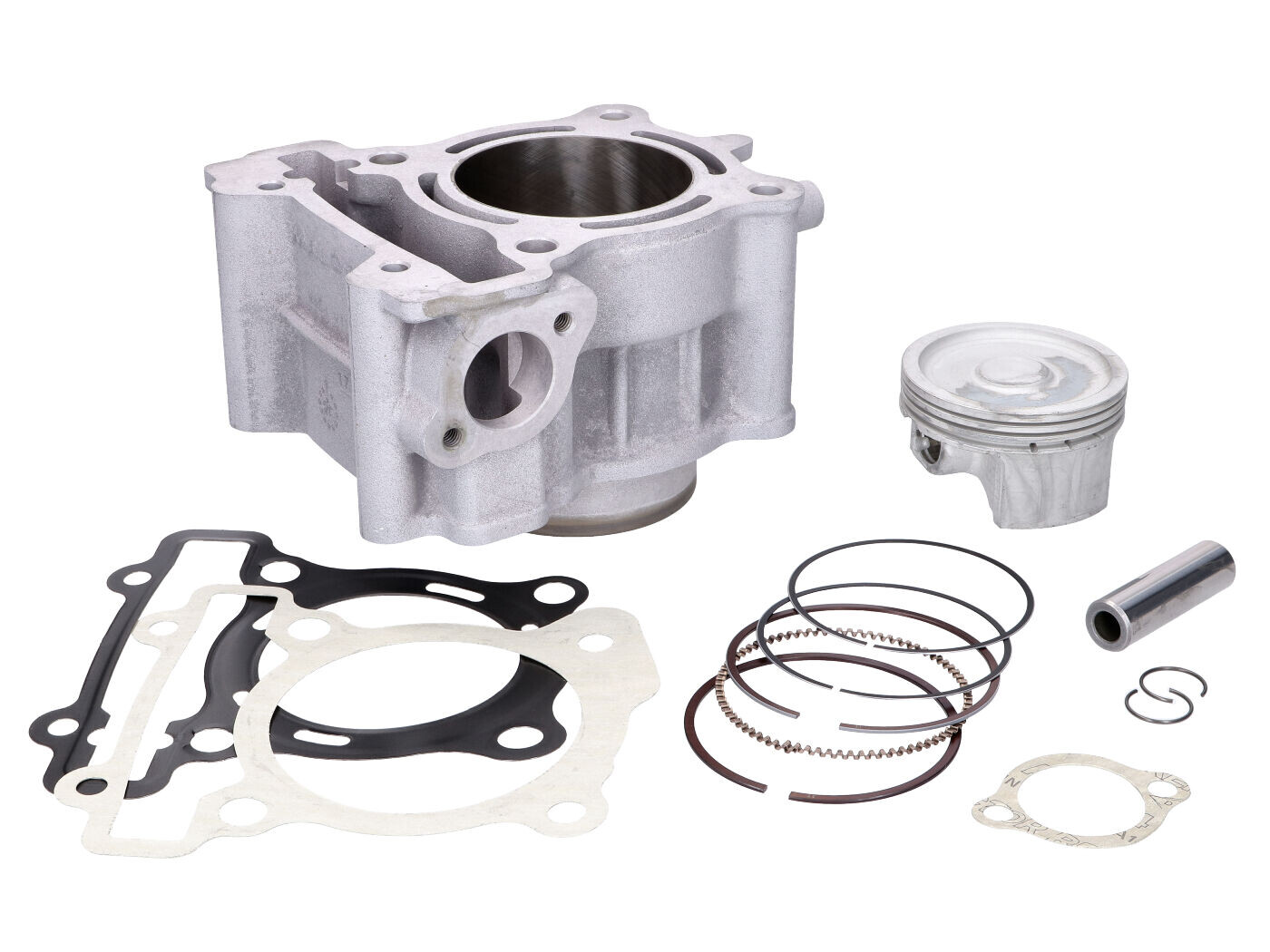

cylinder kit Malossi 183cc 63mm 14mm for YAMAHA N-Max / X-Max 125ie 4T LC Euro3- Euro5 2017-, Fantic Caballero 125ie 4T LC Euro5 2021-, Fantic Enduro XEF 125ie 4T LC Euro5 2021-

Malossi 183cc racing cylinder kit with 63mm bore and 14mm piston pin suitable for Yamaha N-Max / X-Max 125ie 4-stroke LC Euro3-Euro5 2017-, Fantic Caballero 125ie 4-stroke LC Euro5 2021-, Fantic Enduro XEF 125ie 4-stroke LC Euro5 2021.

Aluminium cylinder kit

63mm bore

14mm piston pin

Stroke: 58.7mm

Displacement: 183cm³

Compression ratio: 11.27

Installation clearance tolerance: 0.05 mm

We strongly recommend to use this cylinder kit exclusively with the Malossi Force Master because the original injection system does not inject enough fuel!

To be installed exclusively with the Malossi Force Master 2 control unit M.5518172 at:

YAMAHA N MAX 155 ie 4T LC euro 4 <-2016

YAMAHA N MAX 155 ie 4T LC euro 4 2017->

YAMAHA NVX 155 ie 4T LC euro 4 2017->

YAMAHA TRICITY 155 ie 4T LC euro 4 2017-> (G3H3E)

To be installed exclusively with the Malossi Force Master 2 control unit M.5518417 at:

YAMAHA YZF-R 125 ie 4T LC euro 4 2019->2020

To be installed exclusively with the Malossi Force Master 2.1 control unit M.5519527 at:

YAMAHA N MAX 125 ie 4T LC euro 5 2021-> (E32TE)

YAMAHA X MAX 125 ie 4T LC euro 5 2021-> (E33FE)

To be installed exclusively with the Malossi Force Master 2 control unit M.5519265B at:

BETA MOTARD RR 125 4T LC euro 5 2021-> (B5G00)

FANTIC CABALLERO DELUXE 125 ie 4T LC euro 5 2021->

FANTIC CABALLERO FLAT TRACK 125 ie 4T LC euro 5 2021->

FANTIC CABALLERO SCRAMBLER 125 ie 4T LC euro 5 2021->

FANTIC ENDURO XEF COMPETITION 125 ie 4T LC euro 5 2021->

FANTICENDURO XEF PERFORMANCE 125 ie 4T LC euro 5 2021->

FANTIC MOTARD XMF COMPETITION 125 ie 4T LC euro 5 2021->

FANTIC MOTARD XMF PERFORMANCE 125 ie 4T LC euro 5 2021->

To be installed exclusively with the Malossi Force Master 2 control unit M.5519283B at:

YAMAHA MT- 125 ie 4T LC euro 5 2021-> (E32FE)

YAMAHA XSR 125 ie 4T LC euro 5 2022->

To be installed exclusively with the Malossi Force Master 2.1 control unit M.5519448 at:

YAMAHA N MAX 125 ie 4T LC euro 3 <-2016 (E353E)

YAMAHA N MAX 125 ie 4T LC euro 4 2017->2020 (E3X7E)
