multifunctional speedometer Koso DB EX-03 with E-mark

Universal digital speedometer DB EX-03 from KOSO in compact design.

Suitable for scooters, quad/ ATV and enduro vehicles with 2- or 4-stroke engines with carburetor or fuel injection. The digital speedometer comes in the format 120mm x 38.8mm x 34.2mm and with only 70g weight.

Speed, mileage and time are displayed, including warning lights for engine oil and fuel levels, water temperature, turn signals, high beams and an engine check light. The following functions are also integrated: Daily mileage, maximum and average speed, maintenance mileage voltmeter, stopwatch.

Vibration resistant and resistant to salt water. The acceptance of the speed signal is inductive and the wheel circumference is freely configurable.

Details:

• Speedometer: Display 0 ~ 360 km/h (0 ~225 mph)
.
• Kilometer: display 0 ~ 99,999 km (miles), reset after 99,999 km (miles)
• Clock: Display range: 00:00 ~ 23:59
• Stopwatch: setting range: 0:00:00 ~ 9:59:99, setting unit: 0.01 sec
.
• Maintenance odometer reading: setting range: 300 ~ 5,000 km, can be cleared manually, setting unit: 1 km
.

Recording tours values:

• Daily counter A/B, unit: 1 km (mile) display range: 0.0 ~ 9,999.9 km (miles), reset after 9,999.9 km (miles)
• Hour counter display unit: 0.1 km (mile) display range: 0 ~ 99,999 hours, display unit: 1 hour
.
• Operating hour meter A/B display range: 0~9,999.9 hours, automatic reset after 9,999.9 hours, display unit: 0.1 hour
.
• Average speed: 0 to 360 km/h (0 to 225 mph)
.
• Max. Speed: 0 to 360 km/h (0 to 225 mph)
• Voltage meter: display range: 8.0 ~ 18.0 V DC, display unit: 0.1 V DC
.
• Internal battery level: display range 4 levels
.

Operating data:

• Specification: JIS D 0203 S2
• Operating temperature: -10 ~ +60°C
• Max. Voltage: 8.0 ~ 18.0 V DC

Indicator lamps:

• Right / left turn signal (green)
• Engine oil lamp (red)
• Warning lamp low fuel level (yellow)
• Water temperature lamp (red)
• Neutral lamp (green)
• High beam lamp (blue)
• Motor lamp (yellow)

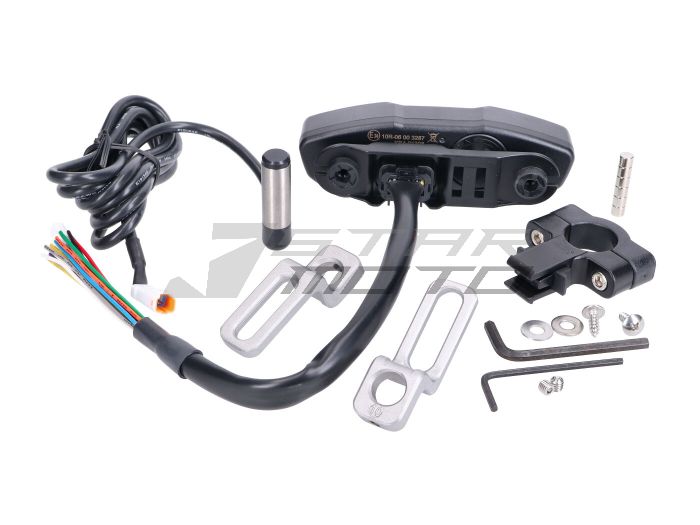

The scope of delivery includes wiring diagram, universal installation instructions and mounting hardware.
