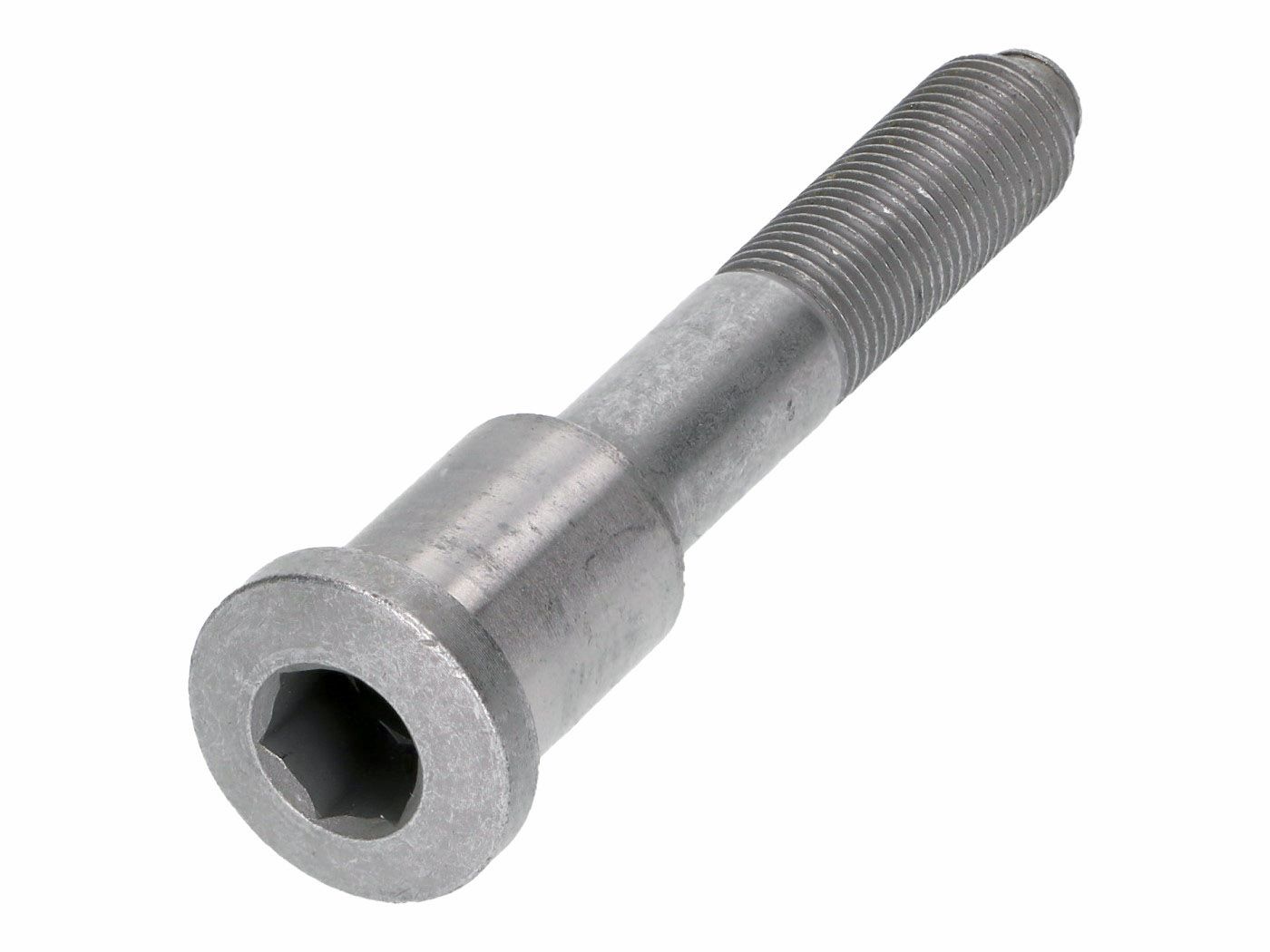

front shock absorber bolt OEM for Vespa GTS, GTV, Primavera, Sprint (single bolt mounting)

Original Piaggio fixing bolt for the lower mounting of the front shock absorber. The bolt is suitable for models which use only one screw for the lower attachment of the shock absorber. OEM number: 1C000500

> Important notice:

In the models listed below, Vespa uses two different steering columns, which can only be roughly classified into certain years of manufacture. An important distinguishing feature are the front shock absorbers used. These can always be assigned to a specific steering column and are easy to identify. The lower shock absorber is fixed either with two screws or with one screw. The mounting bolt listed here is only suitable for vehicles which use a front shock with 1 screw for the lower mounting.

The following models must be checked for the type of front shock absorber used:

Vespa GTS 125 ie Super 4V ABS/ or ABS 09-16 E3 [ZAPM4530]

Vespa GTS 250 ie 4V E3 05-16 [ZAPM45100]

Vespa GTS 300 ie 4V ABS 14-18 E3-E4 [ZAPM459L/ ZAPMA39L]

Vespa GTS 300 ie 4V ABS/ o. ABS 12-16 E3 (Europe) [ZAPM45200/ ZAPM45202]

Vespa GTS 300 ie Super 4V ABS E3-E4 14-18 [ZAPM459L/ ZAPMA39L]

Vespa GTS 300 ie Super 4V ABS/ o. ABS E3 08-16 [ZAPM45200/ 202]

Vespa GTV 300 ie 4V E3 09-10 [ZAPM459L]

Vespa GTV 300 ie Touring 4V E3 10-16 [ZAPM459L]

Vespa Primavera 50 2T 13-17 E2-E3 [ZAPC53200]

Vespa Primavera 50 4T 2V 14-17 25Km/h E2 [ZAPC5330]

Vespa Primavera 50 4T 4V 14-17 25Km/h E2 [ZAPC5330]

Vespa Primavera 50 4T 4V 13-17 E2 [ZAPC53100]

Vespa Primavera 50 4T 4V 14-19 E2 [ZAPC536B]

Vespa Sprint 50 2T 14-17 E2 [ZAPC53201]

Vespa Sprint 50 4T 2V 14-17 25Km/h E2 [ZAPC533]

Vespa Sprint 50 4T 4V 14-17 E2 [ZAPC53101]

Vespa Sprint 50 4T 4V 14-18 E2 [ZAPC536B]
