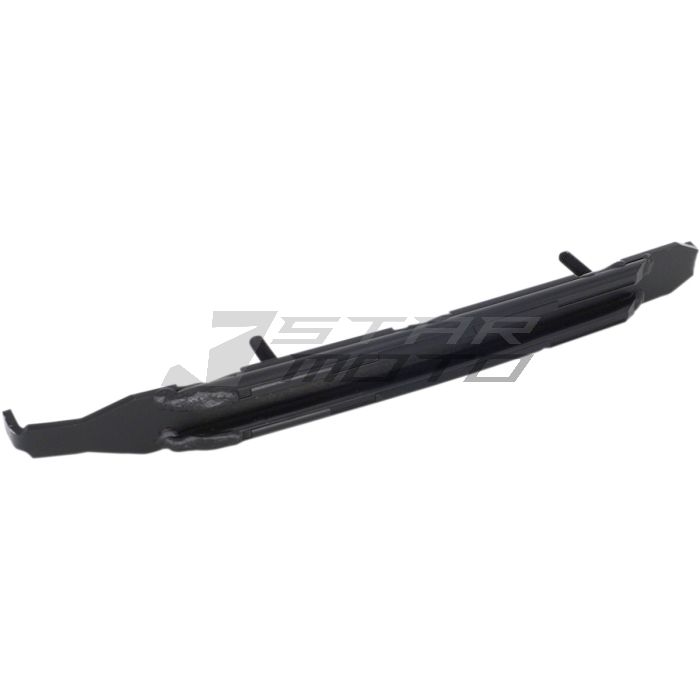

WEARBAR DOOLY 4 POL

Dooly™ Runners

• Dual runners for reduced darting and increased longevity
• Two single runners mounted to one steel plate creates four contact lines that do not follow existing grooves
• One blade per runner contacts terrain during turns, acting like a single runner
• Some skis may require drilling an additional hole.

Polaris '06-'12 IQ Trak Ski Runner Information: To replace stock runners, check for the number of bolts currently being used on your stock ski. If your stock ski comes with three or four bolts use Woody's 1225 runner series which has three bolts which will also fit the 4-bolt pattern. If your stock ski comes with six bolts, use two pair of Woody's 7125 runner series.

COLOR/FINISH	Black
MATERIAL	Carbide
MODEL	Slim Jim Dooly
BAR WIDTH	34,00 mm (1,34")
BAR HEIGHT	17,50 mm (0,69")
TYPE	Dual Runner
UNITS	Each
PRODUCT NAME	Wear Bar
CARBIDE RUNNER ANGLE	60°
STUD DIAMETER - THREAD SIZE	3/8"-16
NUMBER OF STUDS	2
CARBIDE RUNNER LENGTH	101,60 mm (4,00")
WEAR BAR PROFILE	Flat Top
BASE COLOR	Black
