TEMPLATE 2.86PT 2PLY TRAC

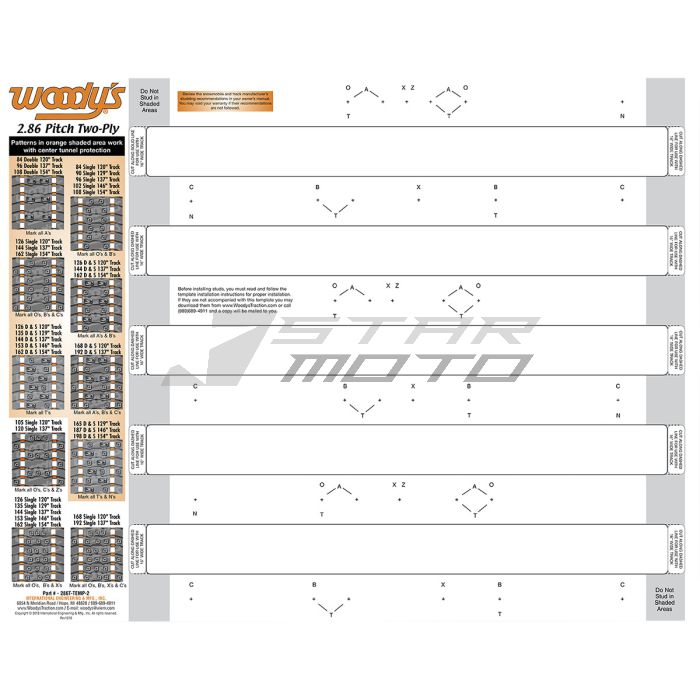

Studding Template

• Stud patterns on Woody's® templates are CAD-designed to maintain track balance
• Follow the instructions and you will have the highest level of precision stud placement
• Printed on laminated heavy card stock

Sleds with center tunnel protection must use patterns in orange shaded area, whereas sleds without center tunnel protection can use any pattern shown for their track length.

APPLICATION	Track
UNITS	Each
PRODUCT NAME	Studding Template
FOR TRACK LENGTH	305 cm (120")| 328 cm (129")| 348 cm (137")| 371 cm (146")| 391 cm (154")
FOR TRACK WIDTH	38 cm (15")| 40,5 cm (16")
FOR TRACK PITCH	73 mm (2,86")
FOR TRACK PLY RATING	2 Ply
