TEMPLATE 20X155 2.86P

Studding Template

• Stud patterns on Woody's® templates are CAD-designed to maintain track balance
• Follow the instructions and you will have the highest level of precision stud placement
• Printed on laminated heavy card stock

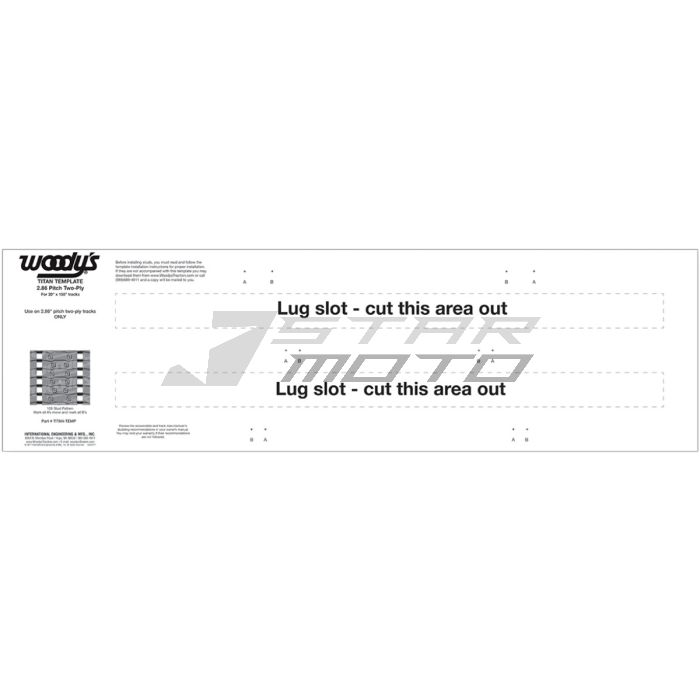

Titan template for 2.86 pitch two-ply track. 20" x 155" track with 108 stud pattern.

APPLICATION	Track Stud
UNITS	Each
PRODUCT NAME	Studding Template
FOR TRACK LENGTH	394 cm (155")
FOR TRACK WIDTH	50,8 cm (20")
FOR TRACK PITCH	73 mm (2,86")
FOR TRACK PLY RATING	2 Ply
