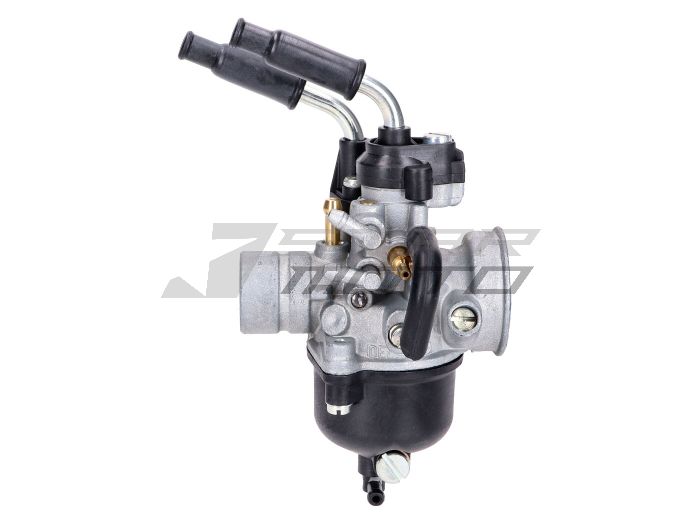

carburetor Dellorto PHBN 16 NS for Malaguti XSM, Yamaha DT50 R SM 03-06

Dellorto PHBN 16NS as a replacement part for a defective carburettor. The PHBN 16NS shares the carb set up with the other listed vehicles. No adjustments necessary if the vehicle is in OEM condition. Fits the original air box and intake manifold. Choke: ME-Choke prepared (E-Choke has taken over from the old carburettors) oil port vacuum port connection engine: 24mm connection Air filter side: 35mm main jet: M6 # 082 Pilot jet: M4 # 034 choke jet: M5 # 045 floats: 13700.1 carburettor slide: 40 (metal version ) needle choice: A39
