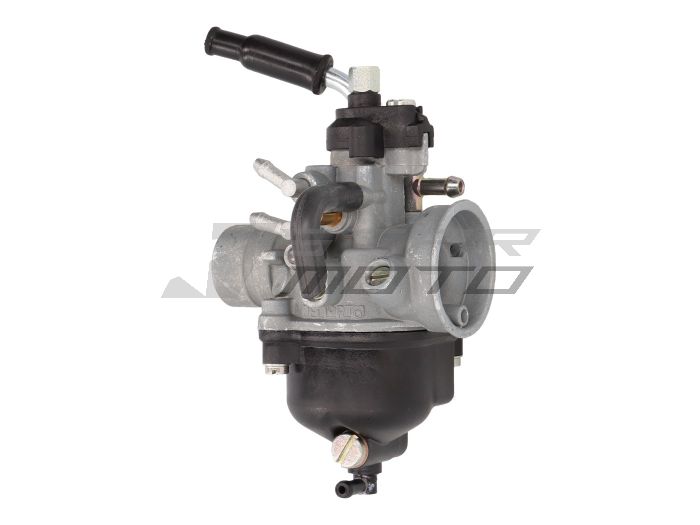

carburetor Dellorto PHBN 16 NS for Minarelli AM6 Euro 2-3

Dellorto PHBN 16NS suitable as spare parts for a defective carburettor. The PHBN 16NS shares the carb set up with the other listed vehicles. No vacuum port. For Euro 2-3 vehicles. Cooling water connections for carburettor heater oil port connection engine: 24mm connection air filter side: 35mm main jet: M6 # 102 idle jet 34 choke jet: M5 # 45 Floats: 13700.1 carburettor slider 40 needle choice: A13
