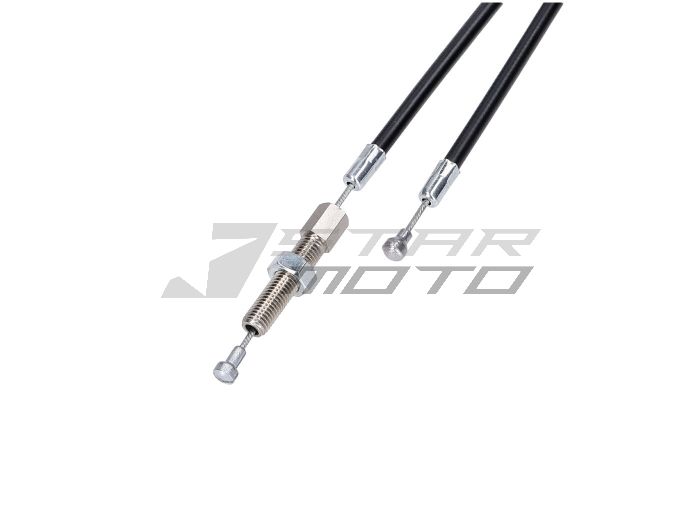

clutch cable Schmitt Premium for Puch MS 50, VS 50 Tour

Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.

The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.

Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

This Schmitt clutch cable fits Puch MS 50 and VS 50 Tour with high type handlebar. OEM number for comparison purposes only: 910.2.12.002.0

Dimensions:

• Overall length: 114cm
• Sheath length (incl. caps): 105cm
• Stranded wire diameter: 1.7mm
• Sheath diameter: 5mm


• End cap length: 12mm
• End cap diameter: 6mm


• Threaded bolt length (with hexagonal adjusting screw): 40mm
• Thread length: 29mm
• Nut: M7


• Graded nipple diameter: 6mm head, 3.5mm stem
• Graded nipple length: 9mm / 10mm
