IGNITION 98-03 XL

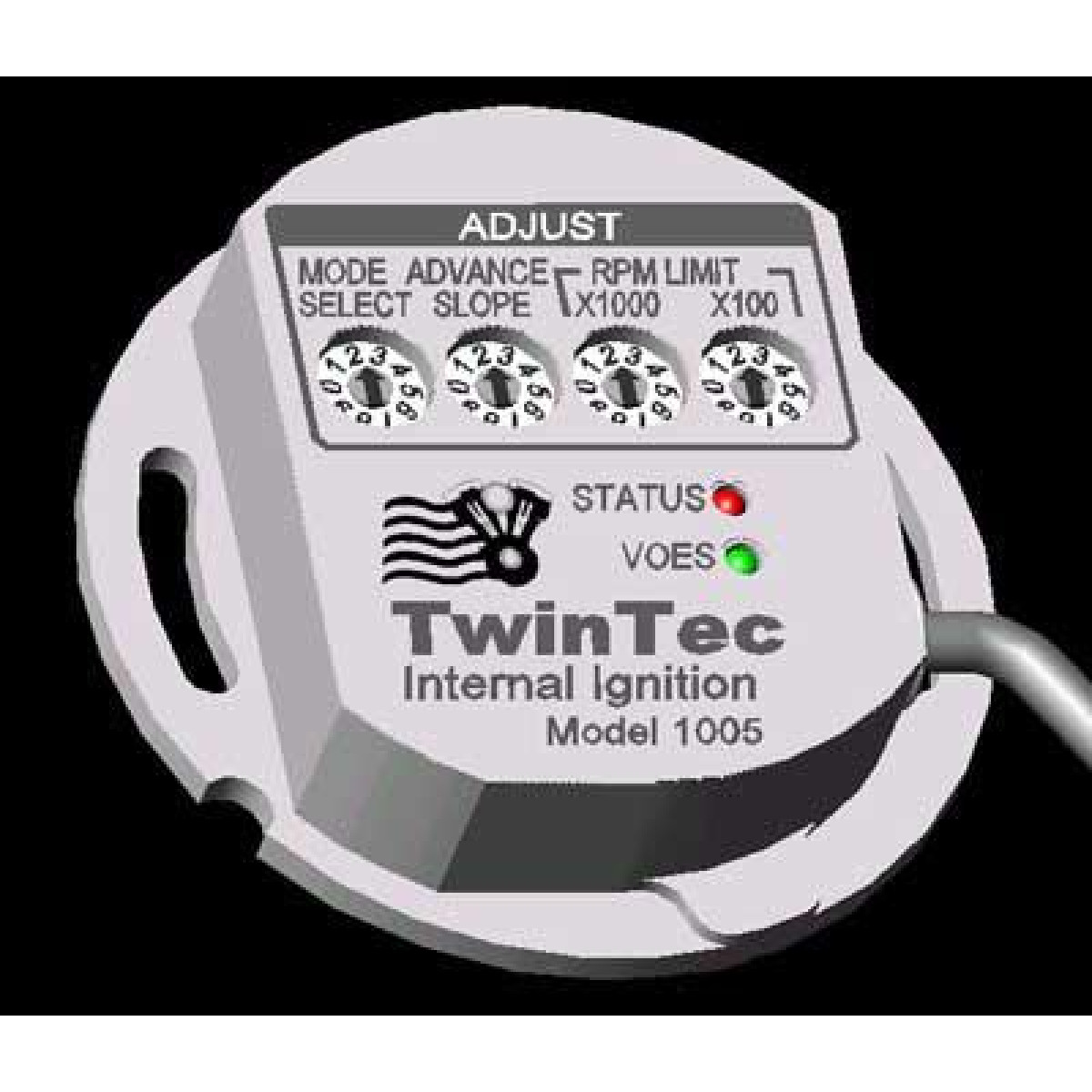

Internal Ignition System

• Feature two advance curve families that are adjustable to accommodate stock and modified engines
• Selectable multi-spark mode for quick starting and smooth cruising
• Four rotary switches for timing adjustments, single/dual ignition mode and rpm limit (100-rpm steps)
• Coil outputs protected against short circuits
• Require coils with a minimum of 3 ohms resistance and low resistance spiral-core-type plug wires
• Require timing rotor OEM #32402-83 or PART #2101-0234
• Use the tachometer wire for the PC link and comes with a connector
• Optional USB interface and software available for programming custom curves (programs available on web site www.daytona-twintec.com)
• Made in the U.S.A.
• Standard models are not legal for sale or use on pollution-controlled vehicles.
• California A.R.B. E.O. No. D-641-1.
